Drive Plate Installation Bolts Installation Note

Remove the sealant from the bolt holes in the crankshaft and from the drive plate installation bolts.
Set the SST against the drive plate.

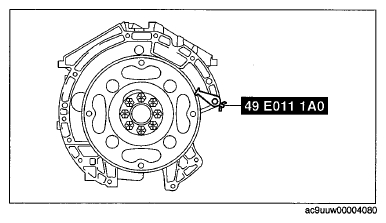

Fig 1: SST On Drive Plate (Tigntening Position)
Courtesy of MAZDA MOTORS CORP.
Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the illustration.
Tightening Torque: 73-87 N.m {7.5-8.8 kgf.m, 54-64 ft.lbf}

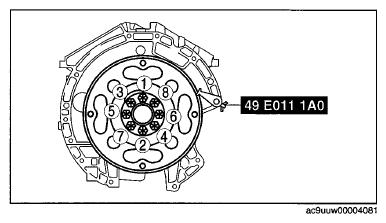

Fig 2: Drive Plate Installation Bolt Loosening Sequence
Courtesy of MAZDA MOTORS CORP.
