Coupler Component Removal/Installation

WARNING:

A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until then are cool.
Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.

CAUTION:

Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
Do not damage the terminals.

Disconnect the negative battery cable.
Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Remove the TCM. (See TCM REMOVAL/INSTALLATION .)
Disconnect the oil hose from the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION .)
Disconnect the oil cooler from the transaxle with the water hose connected, and set it out of the way. (See OIL COOLER REMOVAL/INSTALLATION .)
Disconnect the oil hose from the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
Remove the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
Remove the control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
NOTE:
- Disconnect the solenoid connector according to the following procedure:
  1. Insert a precision flathead screwdriver from the backside into the connector as shown in the illustration.
CAUTION:
- Do not damage the solenoid valves and connectors with the flathead screwdriver.

  Fig 1: Inserting Precision Flathead Screwdriver Into Connector
  Courtesy of MAZDA MOTORS CORP.
  1. ii. Pry the flathead screwdriver in the direction of the arrow and disconnect the connector.
CAUTION:
- When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

  Fig 2: Disconnecting Solenoid Connector
  Courtesy of MAZDA MOTORS CORP.
Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

Fig 3: Input/Turbine Speed Sensor Connector
Courtesy of MAZDA MOTORS CORP.

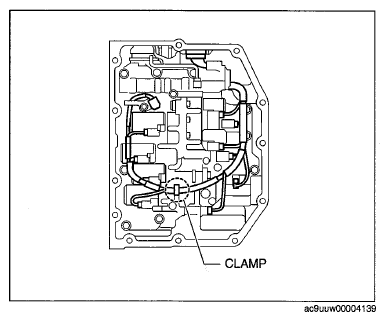

Disconnect the coupler component from the clamp.

Fig 4: Coupler Component Clamp
Courtesy of MAZDA MOTORS CORP.

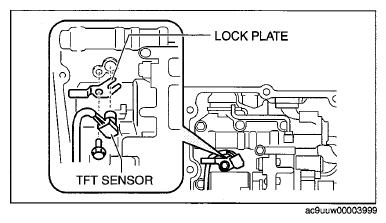

Remove the lock plate, and pull out the TFT sensor from the control valve body.

Fig 5: Lock Plate And TFT Sensor
Courtesy of MAZDA MOTORS CORP.

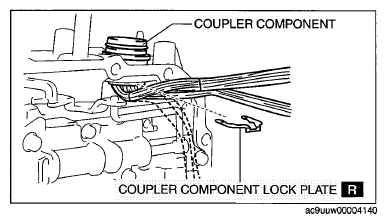

Remove the coupler component lock plate.

Fig 6: Coupler Component And Lock Plate
Courtesy of MAZDA MOTORS CORP.

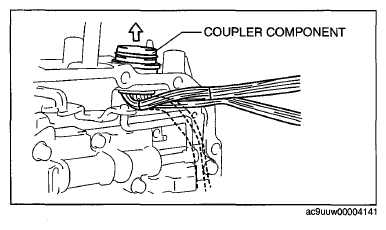

Remove the coupler component from the transaxle case.
CAUTION:
- Do not damage the wiring harness.
- Do not pull hard on the wiring harness.

  Fig 7: Removing Coupler Component From Transaxle Case
  Courtesy of MAZDA MOTORS CORP.

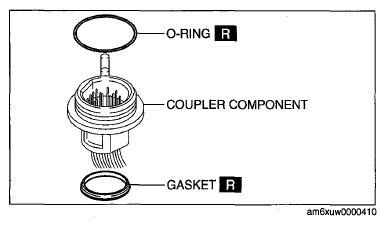

Remove the O-ring and the gasket from the coupler component.
Apply ATF to a new gasket.

Fig 8: Coupler Component, O-Ring And Gasket
Courtesy of MAZDA MOTORS CORP.
Install the new gasket to the coupler component.
Install a new O-ring to the coupler component.
CAUTION:
- Do not apply ATF to the O-ring.

  Fig 9: Coupler Component, O-Ring And Gasket
  Courtesy of MAZDA MOTORS CORP.

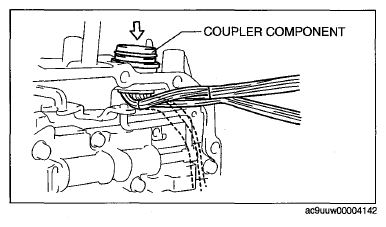

Install the coupler component to the transaxle case.
CAUTION:
- Do not apply too much force to the coupler component.
- Do not damage the coupler component.

  Fig 10: Installing Coupler Component To Transaxle Case
  Courtesy of MAZDA MOTORS CORP.
Install a new coupler component lock plate.
NOTE:
- Assemble the coupler component to the transaxle case and engage it with the coupler component lock plate.

  Fig 11: Coupler Component Lock Plate
  Courtesy of MAZDA MOTORS CORP.
Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the illustration.
Tightening Torque:

6.0-8.0 N.m {62-81 kgf.cm, 54-70 in.lbf}

Fig 12: Lock Plate And TFT Sensor
Courtesy of MAZDA MOTORS CORP.
Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

Fig 13: Input/Turbine Speed Sensor Connector
Courtesy of MAZDA MOTORS CORP.
Connect the coupler component to the clamps.
Install the new control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
Install the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
Connect the oil hose to the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
Install the oil cooler to the transaxle. (See OIL COOLER REMOVAL/INSTALLATION .)
Connect the oil hose to the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION .)
Install the TCM. (See TCM REMOVAL/INSTALLATION .)
Install the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable.
Perform the "Neutral Position Learning". (See TCM NEUTRAL POSITION LEARNING .)
Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
Perform the "Road Test". (See ROAD TEST .)
