TCC Control Solenoid Circuit: Notes

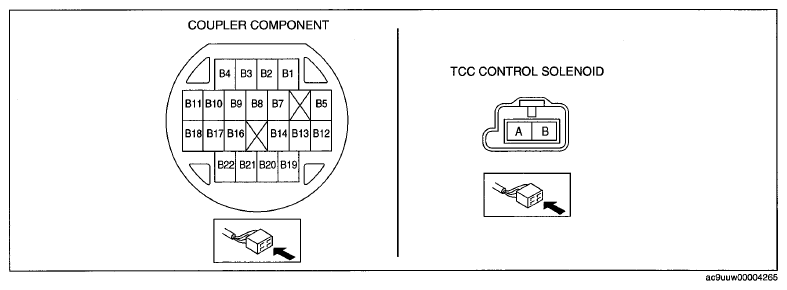

- Measure the continuity between coupler component terminal B4 and TCC control solenoid terminal A.
- Measure the continuity between coupler component terminal B9 and TCC control solenoid terminal B.
