Line Pressure Control Solenoid Circuit: Notes

Measure the continuity between coupler component terminal B1 and line pressure control solenoid terminal A.
Measure the continuity between coupler component terminal B3 and line pressure control solenoid terminal B.

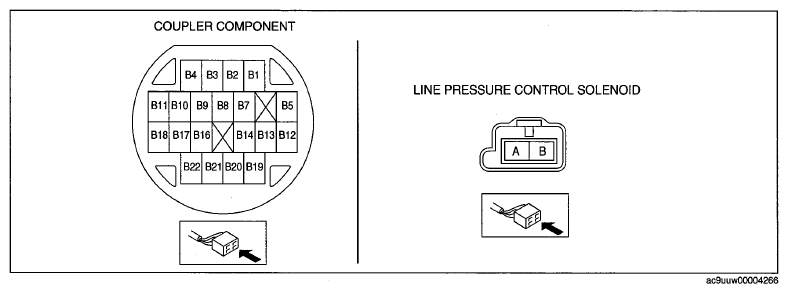

Fig 1: Coupler Component And Line Pressure Control Solenoid Connector Terminals
Courtesy of MAZDA MOTORS CORP.
