Input/Turbine Speed Sensor Specification

INPUT/TURBINE SPEED SENSOR SPECIFICATION

Terminal Continuity
Coupler component terminal B12-input/turbine speed sensor terminal A Continuity
Coupler component terminal B13-input/turbine speed sensor terminal B Continuity

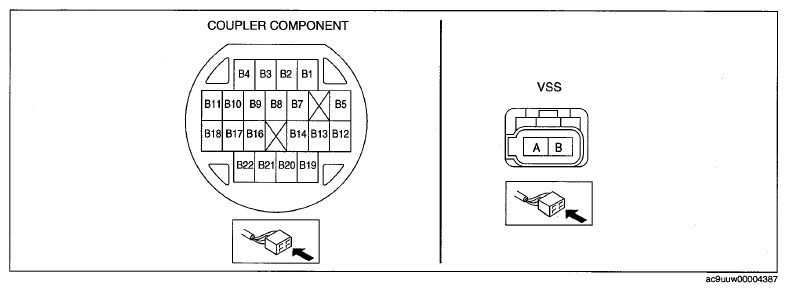

Fig 1: Coupler Component And VSS Connector Terminals
G07822793Courtesy of MAZDA MOTORS CORP.
