Control Valve Body Removal/Installation

WARNING:
  • A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.
  • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable.
  2. Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
  5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  6. Disconnect the oil hose from the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION .)
  7. Disconnect the oil cooler from the transaxle with the water hose connected, and set it out of the way. (See OIL COOLER REMOVAL/INSTALLATION .)
  8. Disconnect the oil hose from the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  9. Remove the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  10. Remove the control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
    NOTE:
    • Disconnect the solenoid connector according to the following procedure
      1. Insert a precision flathead screwdriver from the backside into the connector as shown in the illustration.
    CAUTION:
    • Do not damage the solenoid valves and connectors with the flathead screwdriver.

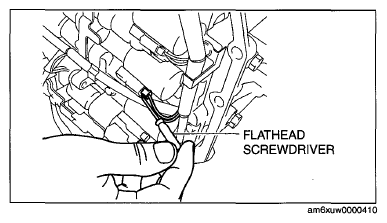

      Fig 1: Inserting Flathead Screwdriver Into Connector
      G07822802Courtesy of MAZDA MOTORS CORP.
      1. ii. Pry the flathead screwdriver in the direction of the arrow and disconnect the connector.
    CAUTION:
    • When disconnecting connectors, grasp the connectors, not the wiring harnesses. Otherwise, the wiring harnesses may be pulled out of the connector causing poor contact.

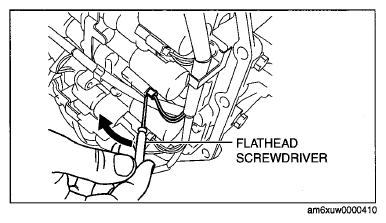

      Fig 2: Disconnecting Shift Solenoid Connector
      G07822827Courtesy of MAZDA MOTORS CORP.
  11. Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

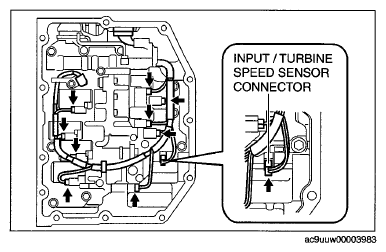

    Fig 3: Input/Turbine Speed Sensor Connector
    G07626060Courtesy of MAZDA MOTORS CORP.
  12. Disconnect the coupler component from the clamp.

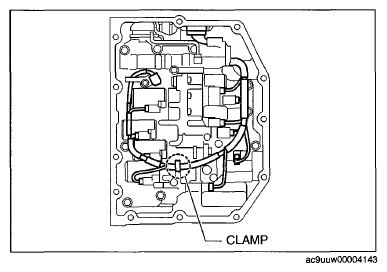

    Fig 4: Shift Solenoid Clamp
    G07822964Courtesy of MAZDA MOTORS CORP.
  13. Remove the lock plate, and pull out the TFT sensor from the control valve body.

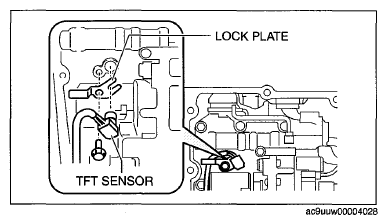

    Fig 5: TFT Sensor And Lock Plate
    G07822965Courtesy of MAZDA MOTORS CORP.
  14. Remove the VSS connector from the solenoid clamp.

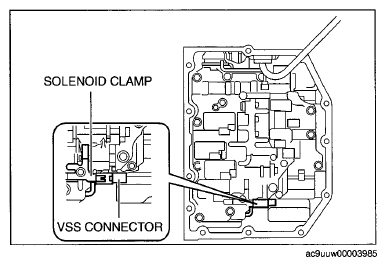

    Fig 6: VSS Connector And Solenoid Clamp
    G07627185Courtesy of MAZDA MOTORS CORP.
  15. Remove the suction cover and the gasket.

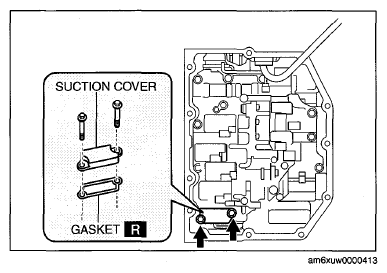

    Fig 7: Suction Cover And Gasket
    G07822967Courtesy of MAZDA MOTORS CORP.
  16. Remove the control valve body installation bolts in the order shown in the illustration.

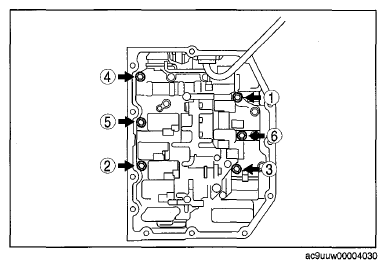

    Fig 8: Control Valve Body Installation Bolt Removing Order
    G07822968Courtesy of MAZDA MOTORS CORP.
  17. Disconnect the manual valve link and remove the control valve body component.
    CAUTION:
    • Do not drop the control valve body component.

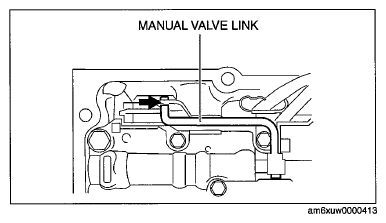

      Fig 9: Manual Valve Link
      G07822969Courtesy of MAZDA MOTORS CORP.
  18. Fix the coupler component with tape to the transaxle case as shown in the illustration.
    NOTE:
    • Be sure to secure the coupler component with tape so that it will not interfere with the control valve body component.

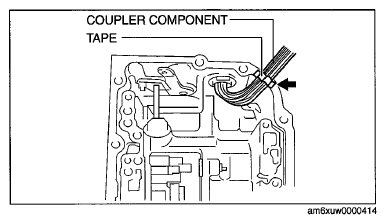

      Fig 10: Coupler Component With Tape
      G07822970Courtesy of MAZDA MOTORS CORP.
  19. Fix the VSS wiring harness with tape to the transaxle case as shown in the illustration.
    NOTE:
    • Be sure to secure the VSS with tape so that they will not interfere with the control valve body component.

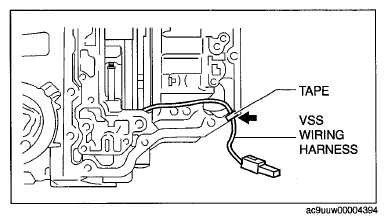

      Fig 11: VSS Wiring Harness With Tape
      G07822971Courtesy of MAZDA MOTORS CORP.
  20. Connect the manual valve link and install the control valve body component.
    CAUTION:
    • When installing the control valve body component, secure the coupler component to the wiring harness clamp.
    • Do not pinch the coupler component between the transaxle case and the control valve body component.

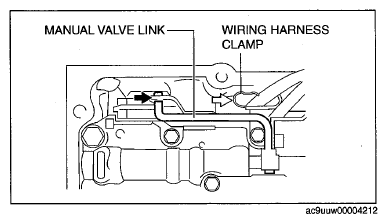

      Fig 12: Manual Valve Link And Wiring Harness Clamp
      G07822972Courtesy of MAZDA MOTORS CORP.
  21. Temporarily install the control valve body component with the bolts.
    NOTE:
    • Aligning the bolt holes, temporarily tighten the bolt by hand.

    Bolt length (measured from below the head)

    1. 21 mm {0.83 in}
    2. 31 mm {1.2 in}

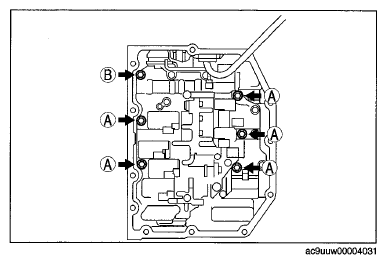

      Fig 13: Control Valve Body Bolts
      G07822973Courtesy of MAZDA MOTORS CORP.
  22. Temporarily install the suction cover and a new gasket with the bolts.
    NOTE:
    • Aligning the bolt holes, temporarily tighten the bolt by hand.
      Fig 14: Suction Cover And Gasket
      G07822967Courtesy of MAZDA MOTORS CORP.
  23. Tighten the bolts in the order shown in the illustration.

    Tightening Torque: 8-12 N.m {82-122 kgf.cm, 71-106 in.lbf}

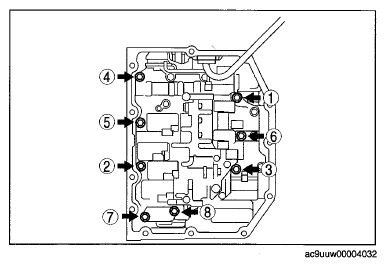

    Fig 15: Control Valve Body Bolt Tightening Sequence
    G07822975Courtesy of MAZDA MOTORS CORP.
  24. Install the connector of the VSS to the solenoid clamp.
    Fig 16: Solenoid Clamp And VSS Connector
    G07627185Courtesy of MAZDA MOTORS CORP.
  25. Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the illustration.

    Tightening Torque: 6.0-8.0 N.m {62-81 kgf.cm, 54-70 in.lbf}

    Fig 17: Lock Plate And TFT Sensor
    G07822965Courtesy of MAZDA MOTORS CORP.
  26. Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.
    Fig 18: Input/Turbine Speed Sensor Connector
    G07626060Courtesy of MAZDA MOTORS CORP.
  27. Connect the coupler component to the clamps.
  28. Install the new control valve body cover. (See CONTROL VALVE BODY COVER REPLACEMENT .)
  29. Install the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)
  30. Connect the oil hose to the oil pipe component (transaxle side). (See OIL COOLER REMOVAL/INSTALLATION .)

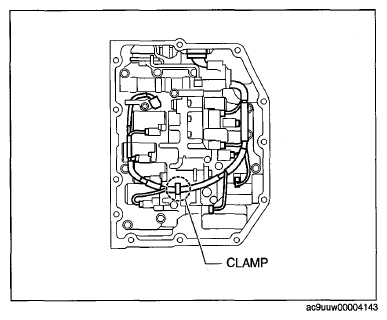

    Fig 19: Coupler Component Clamp Position
    G07822979Courtesy of MAZDA MOTORS CORP.
  31. Install the oil cooler to the transaxle. (See OIL COOLER REMOVAL/INSTALLATION .)
  32. Connect the oil hose to the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION .)
  33. Install the air cleaner bracket. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  34. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  35. Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  36. Connect the negative battery cable.
  37. Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL ADJUSTMENT .)
  38. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  39. Perform the "Road Test". (See ROAD TEST .)
