Transaxle Installation Note

Set the transaxle on a jack and lift it.

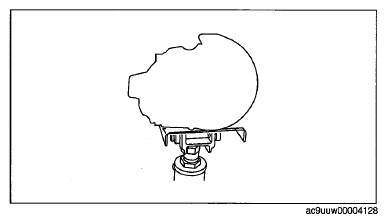

Fig 1: Setting Transaxle On Jack
Courtesy of MAZDA MOTORS CORP.
Rotate the drive plate so that the logo mark faces upward.

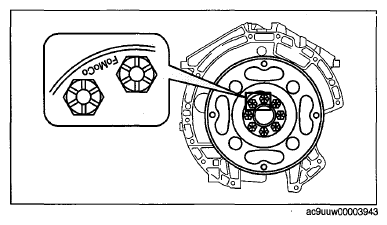

Fig 2: Drive Plate Logo
Courtesy of MAZDA MOTORS CORP.
Rotate the torque converter so that the mark faces upward.

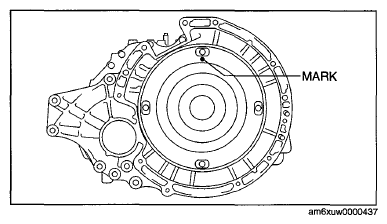

Fig 3: Torque Converter Mark
Courtesy of MAZDA MOTORS CORP.
Verify that the torque converter stud bolts are inserted into the drive plate bolt holes from the service hole.
CAUTION:
- Verify that the torque converter stud bolts are inserted into the drive plate bolt holes, and install the transaxle installation bolts. Otherwise, the drive plate could be damaged.

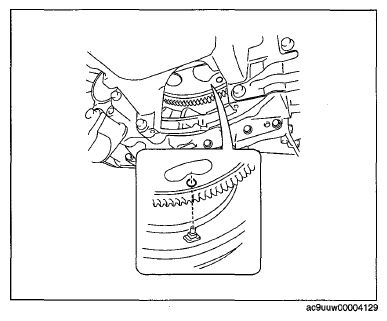

  Fig 4: Torque Converter Stud Bolt
  Courtesy of MAZDA MOTORS CORP.
Install the transaxle mounting bolts and bracket.
Tightening Torque: 37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}

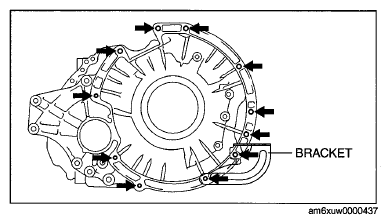

Fig 5: Locating Transaxle Mounting Bolts And Bracket
Courtesy of MAZDA MOTORS CORP.
