Torque Converter Installation Nuts Installation Note

Align the holes by turning the torque converter.
Insert a screwdriver through the converter housing service hole, and lock the drive plate.

Fig 1: Locking Drive Plate
Courtesy of MAZDA MOTORS CORP.
Tighten the torque converter mounting nuts.
CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified Tightening Torque.
Tightening Torque: 41-54 N.m {4.2-5.5 kgf.m, 31-39 ft.lbf}

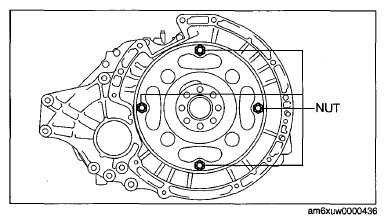

Fig 2: Torque Converter Mounting Nuts
Courtesy of MAZDA MOTORS CORP.
Install the cover as shown in the illustration.

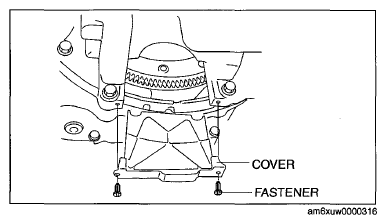

Fig 3: Torque Converter Cover And Fastener
Courtesy of MAZDA MOTORS CORP.
