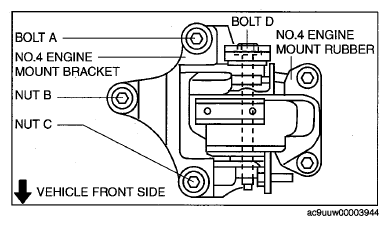

No. 4 Engine Mount Bracket Installation Note
- Install the No. 4 engine mount bracket to the transaxle and temporarily tighten nuts.
- Temporarily tighten bolt.
- Temporarily tighten bolt A and nuts B, C.
- Tighten bolt A, nuts B and C in the order of B→A→C.
- Tighten bolt D.
Tightening Torque:
Bolt A, Nut B, C: 67-93 N.m {6.9-9.4 kgf.m, 50-68 ft.lbf}
Bolt D: 75-104 N.m {7.7-10 kgf.m, 56-76 ft.lbf}
