Automatic Transaxle Location Index

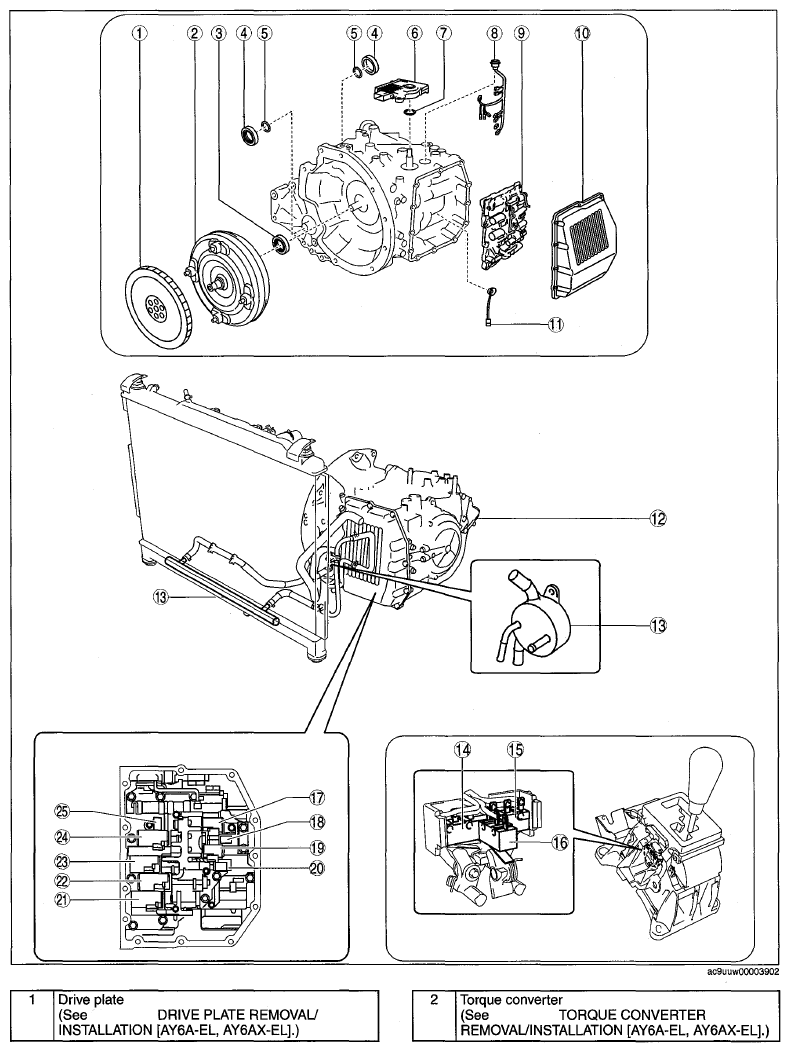

Fig 1: Automatic Transaxle Component Locations (1 Of 2)
G07822630Courtesy of MAZDA MOTORS CORP.

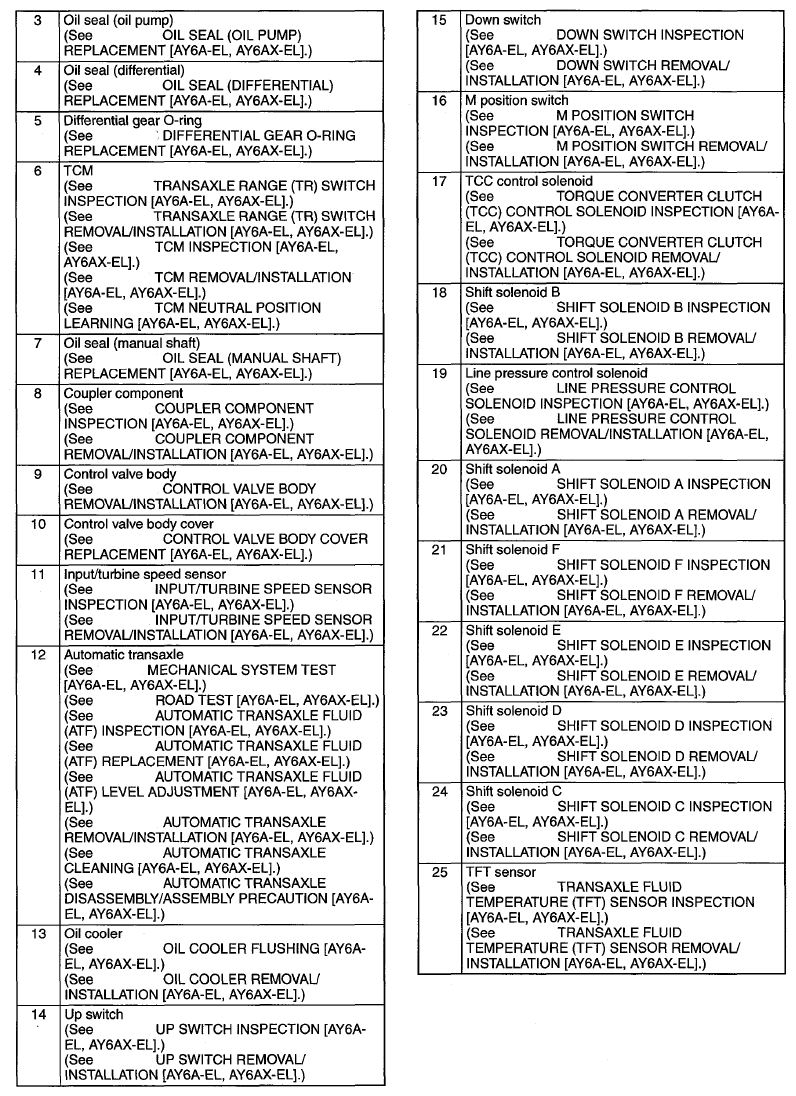

Fig 2: Automatic Transaxle Component Locations (2 Of 2)
G07822631Courtesy of MAZDA MOTORS CORP.

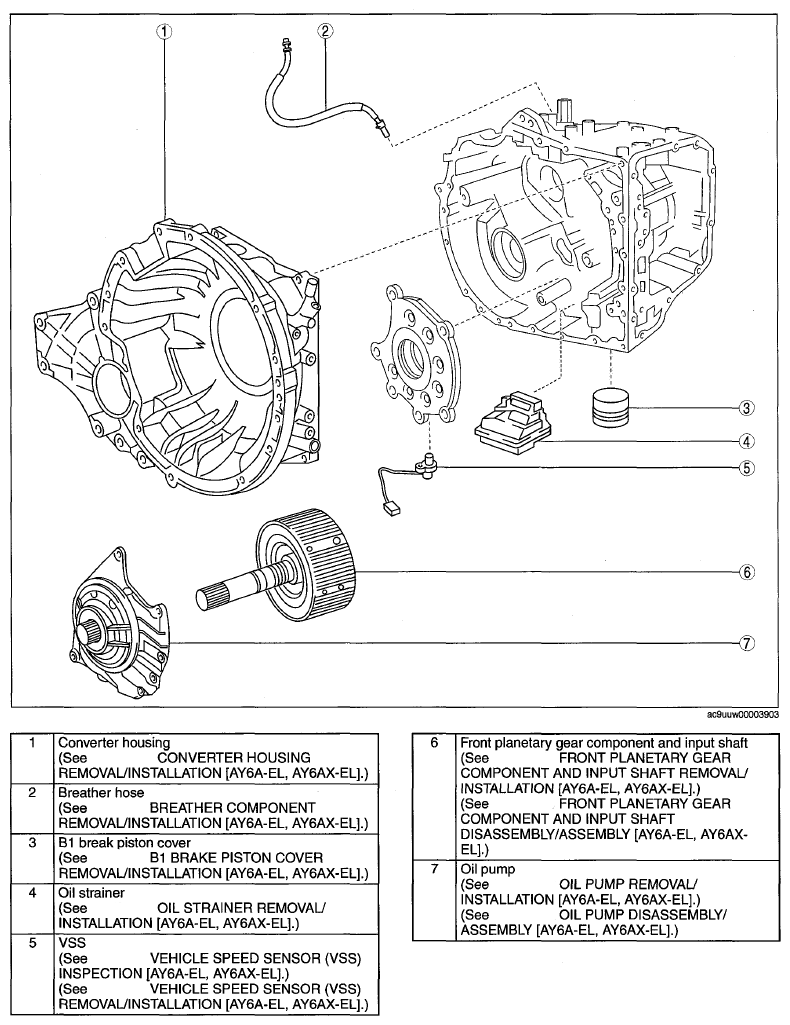

Fig 3: Exploded View Of Automatic Transaxle
G07822632Courtesy of MAZDA MOTORS CORP.
