Automatic Transaxle Fluid (ATF) Level Adjustment: Notes
CAUTION:
- Adjust the ATF level when the ATF is at the appropriate temperature (between 37°C {99°F} and under 47°C {117°F}).
- For a low amount of ATF flowing from the overflow hole, the fluid level is not adjusted to the specification because the fluid that has accumulated in the overflow tube is what has flowed from the hole.

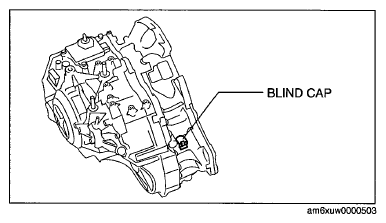

- Do not remove the blind cap because it is not a removable part.
- Perform the following procedure for the ATF level adjustment.
- "ATF Replenishment" (See ATF REPLENISHMENT .)
- "ATF Level Adjustment" (See ATF LEVEL ADJUSTMENT .)
