Symptom Troubleshooting - Engine Controls
>>
Engine Control System Symptom Troubleshooting Wiring Diagram
Engine Control System Symptom Troubleshooting Wiring Diagram

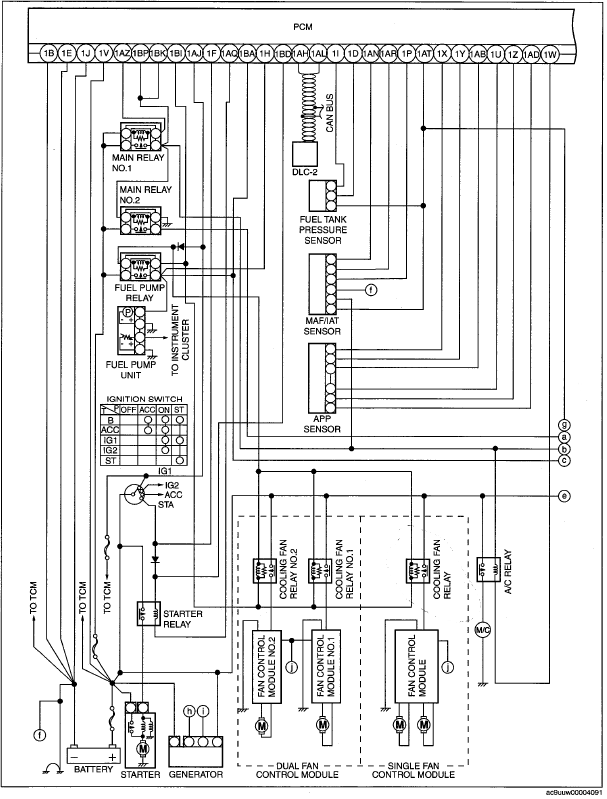

Fig 1: Engine Control System Symptom Troubleshooting Wiring Diagram - MZI-3.7 (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

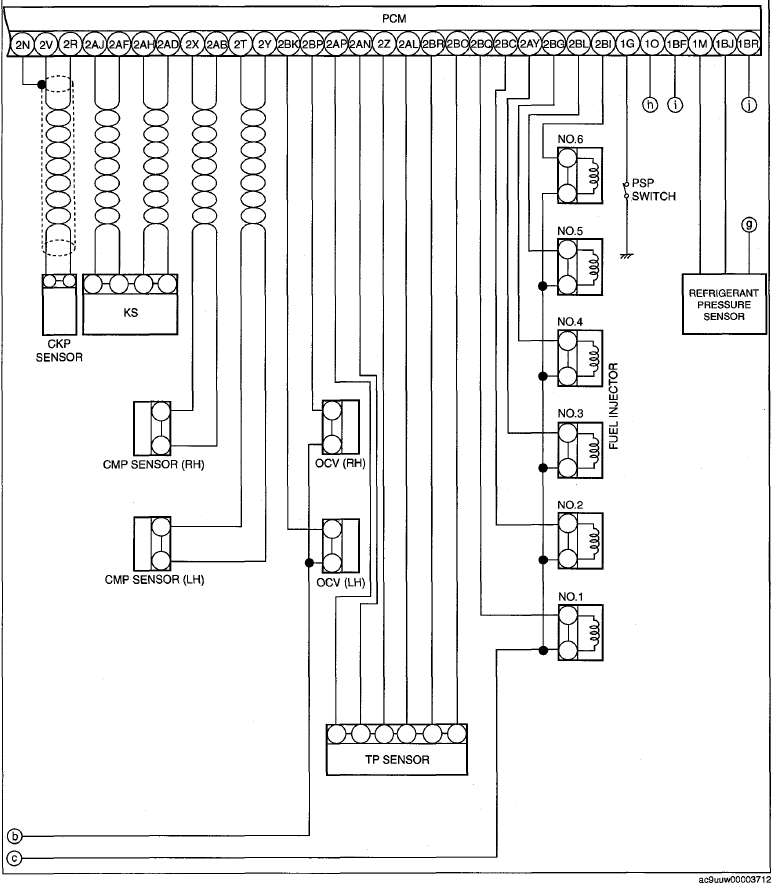

Fig 2: Engine Control System Symptom Troubleshooting Wiring Diagram - MZI-3.7 (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

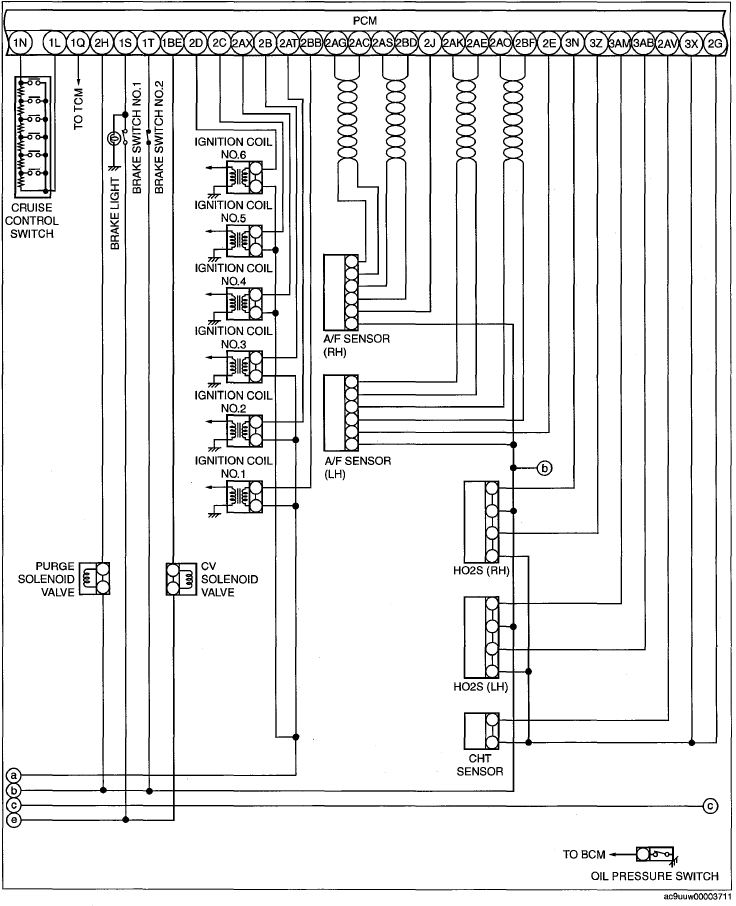

Fig 3: Engine Control System Symptom Troubleshooting Wiring Diagram - MZI-3.7 (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
