Engine Control System - Diagnostic Introduction
>>
On-Board Diagnostic Wiring Diagram
On-Board Diagnostic Wiring Diagram

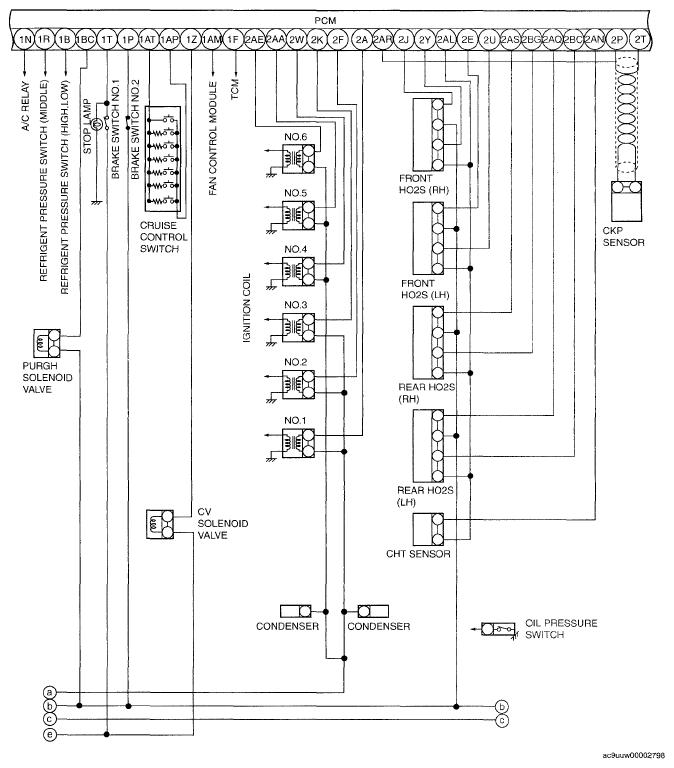

Fig 1: On-Board Diagnostic Wiring Diagram - MZI-3.7 (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

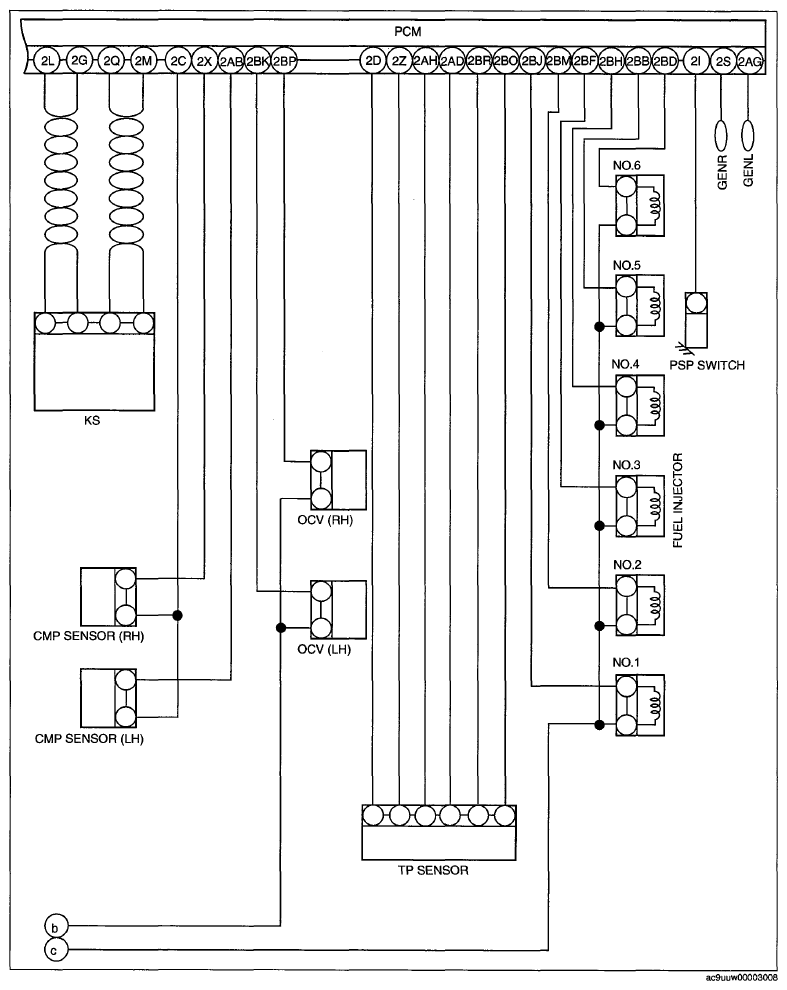

Fig 2: On-Board Diagnostic Wiring Diagram - MZI-3.7 (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

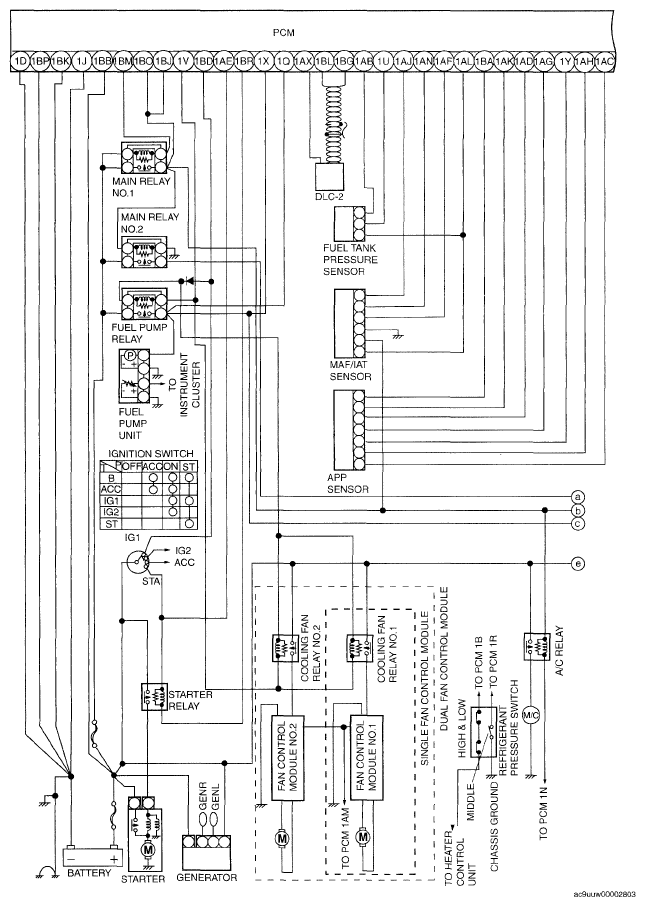

Fig 3: On-Board Diagnostic Wiring Diagram - MZI-3.7 (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
