DTC P0603: Pcm Keep Alive Memory (KAM) Error: Notes

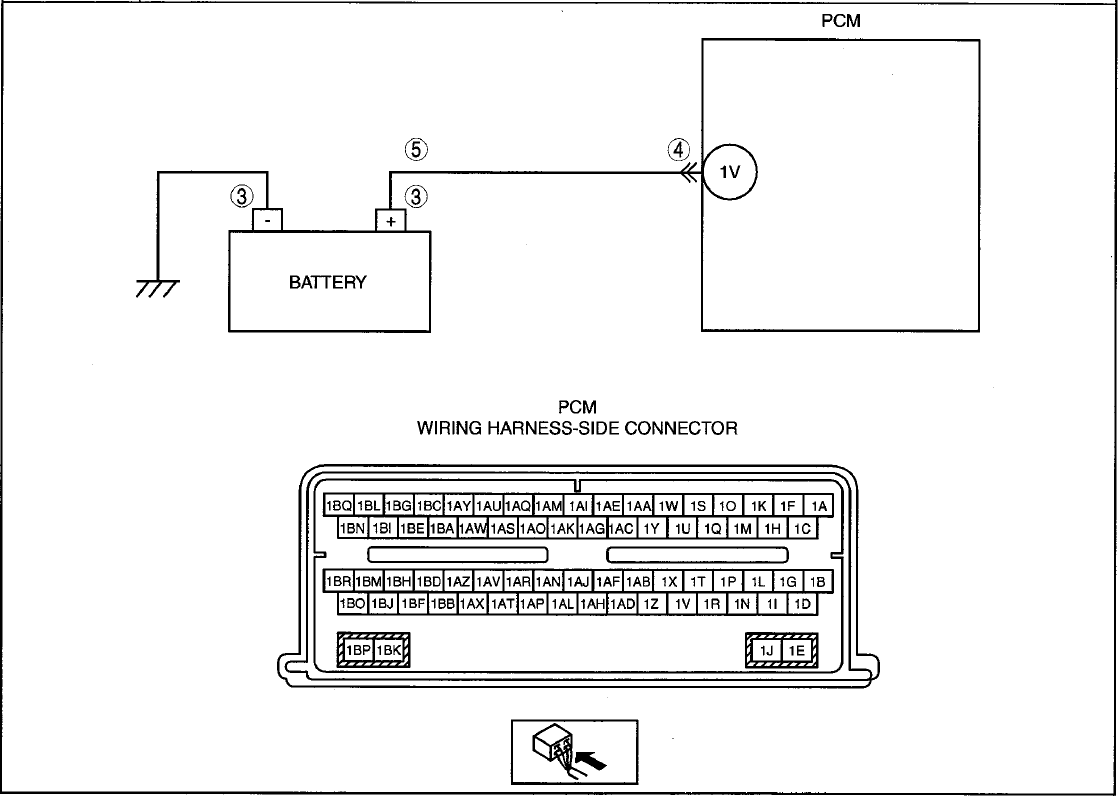

DTC P0603 CHART (MZI-3.7)

DTC P0603	PCM keep alive memory (KAM) error
DETECTION CONDITION	Indicates the PCM has experienced an internal memory concern. However, there are external items that can cause this DTC.
POSSIBLE CAUSE	Battery terminal corrosion Loose battery connection Connector or terminal malfunction Open circuit between battery positive terminal and PCM terminal 1 V Reprogramming
Courtesy of MAZDA MOTORS CORP.
