Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for open or short (continuity check).
    Fig 1: Identifying Throttle Body Connector End View
    G04969543Courtesy of MAZDA MOTORS CORP.

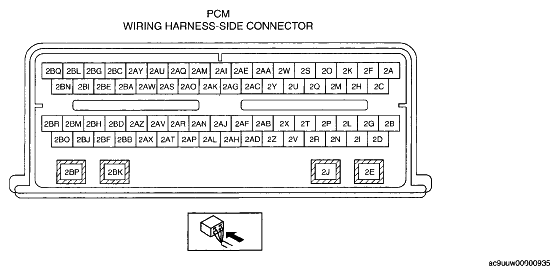

    Fig 2: Identifying PCM Connector End View & Terminal Layout
    G04969544Courtesy of MAZDA MOTORS CORP.
