Intake Manifold Installation Note

  1. Tighten the intake manifold installation bolts in the order shown in the illustration.

    Intake manifold installation bolt tightening torque

    8.5-11.5 N.m {87-117 kgf.cm, 76-101 in.lbf}

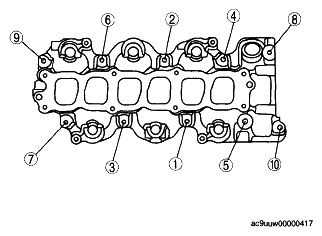

    Fig 1: Intake Manifold Bolt Tightening Sequence
    G04969540Courtesy of MAZDA MOTORS CORP.
