Mazda
>>
2014
>>
CX-9 Touring, 3.7L Eng VIN A, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Remove, Overhaul & Install
>>
Intake-Air System
>>
Intake-Air System Location Index
Intake-Air System Location Index

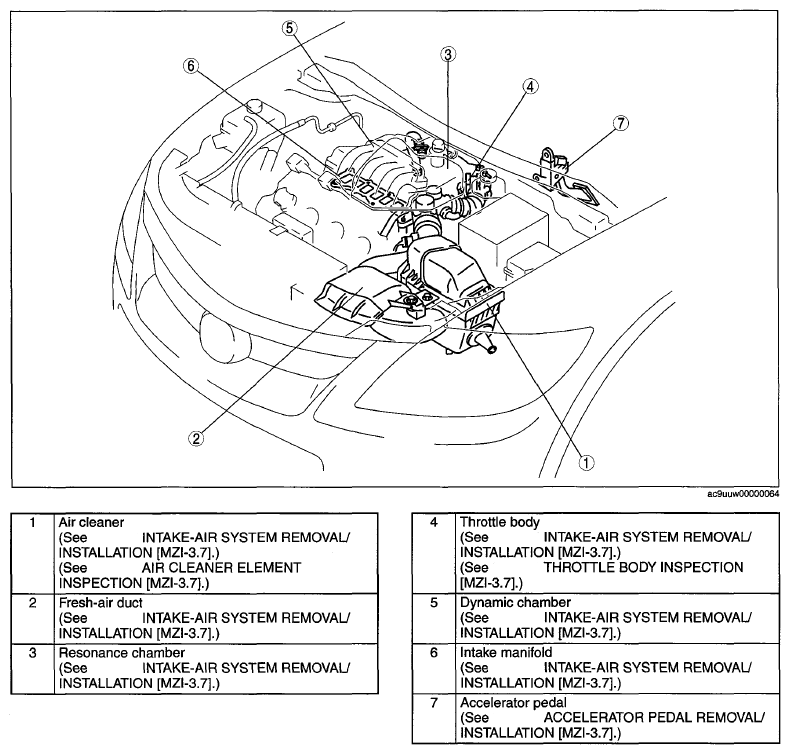

Fig 1: Identifying Intake-Air System Component Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
