Resistance Inspection

  1. Measure the resistance of the spark plug using a tester as shown in the figure.
    • If not within the specification, replace the spark plug.

    Spark plug resistance 2-20 kilohms

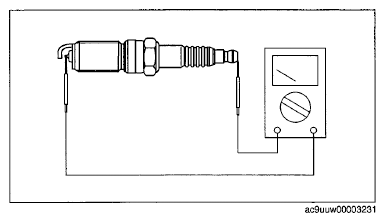

    Fig 1: Measuring Resistance Of Spark Plug Using Tester
    G06729281Courtesy of MAZDA MOTORS CORP.
