Quick Release Connector Removal/Installation: Installation
NOTE:
- If the quick release connector O-ring is damaged or has slipped, replace the fuel hose.
- Inspect the fuel hose and fuel pipe sealing surface for damage and deformation.
- If there is any malfunction, replace it with a new one.

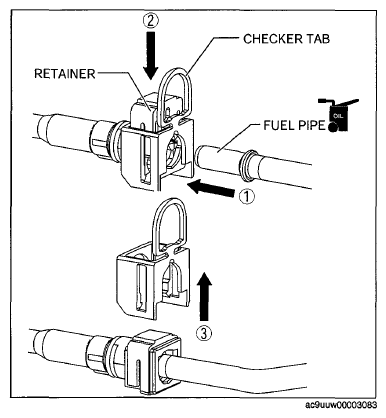

- Install the quick release connector.
- Insert the fuel pipe straight to the end of the quick release connector.
- Push down the retainer using a finger.
- If the retainer cannot be pushed down, push the fuel pipe further to the quick release connector.
- Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
- Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
