Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for open or short (continuity check).
    Fig 1: Identifying Fuel Injector Connector Terminals
    G04969593Courtesy of MAZDA MOTORS CORP.
    Fig 2: Identifying Fuel Pump Relay Terminals
    G04969552Courtesy of MAZDA MOTORS CORP.

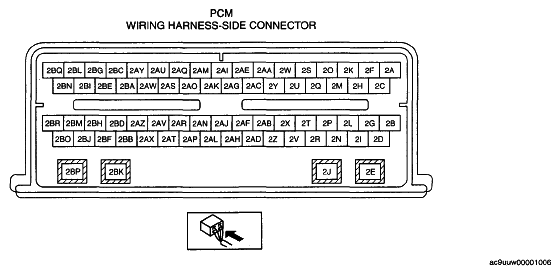

    Fig 3: PCM Connector Terminal Identification
    G04969595Courtesy of MAZDA MOTORS CORP.
