Generator Removal/Installation: Notes

WARNING:
  • Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
  • When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
  1. Disconnect the negative battery cable.
  2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  3. Remove the air cleaner and fresh air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the cooling fan component. (See COOLING FAN COMPONENT REMOVAL/INSTALLATION .)
  5. Remove the front splash shield (RH).
  6. Remove the generator and A/C drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  7. Remove in the order indicated in the table in the illustration.
  8. Install in the reverse order of removal.
  9. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
  10. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

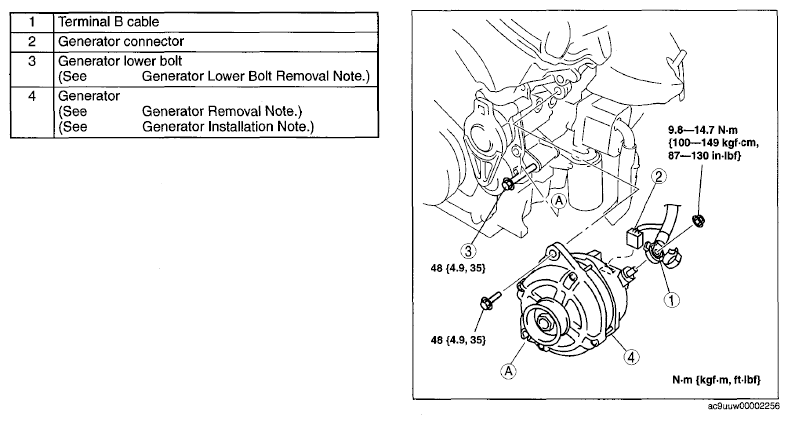

    Fig 1: View Of Generator With Torque Specifications
    G06729264Courtesy of MAZDA MOTORS CORP.
