Battery Removal/Installation: Notes

  1. Remove in the order indicated in the table in the illustration.
  2. Install in the reverse order of removal.

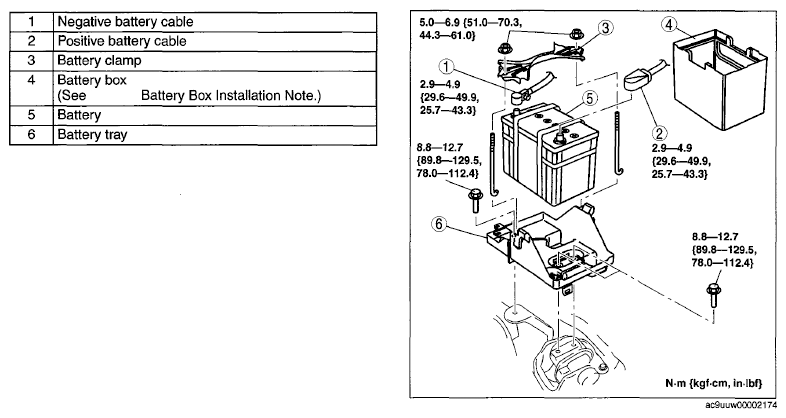

    Fig 1: Locating Battery Mounting Components With Torque Specifications
    G06729261Courtesy of MAZDA MOTORS CORP.
