Front Door

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  4. Remove the bolts.
  5. Remove the power window motor from the power window regulator.

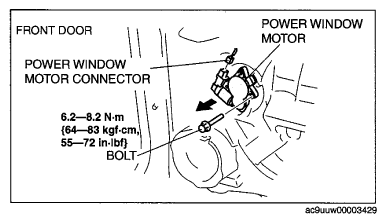

    Fig 1: Power Window Motor & Regulator With Torque Specifications
    G06730211Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the power window motor connector.
  7. Install in the reverse order of removal.
    NOTE:
    • When installing the power window motor to the power window regulator drum, the drum housing tabs may detach from the door module panel. If this happens, insert a hand through the speaker installation hole to engage the drum housing tabs, and install the power window motor to the drum while supporting the drum housing.
