DTC U3003:16: Notes

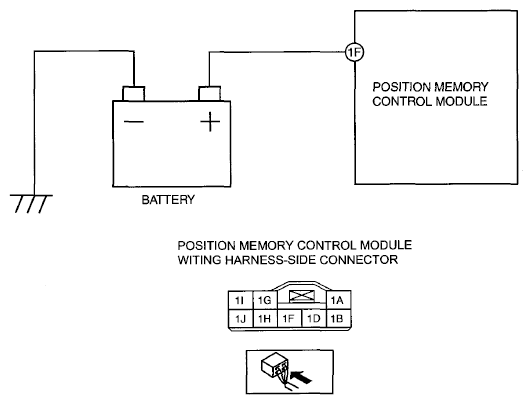

DTC U3003:16 CHART (POSITION MEMORY CONTROL SYSTEM)
| DTC U3003:16 |
Battery voltage low |
| DETECTION CONDITION |
Voltage from battery power supply remains at 9 V or less for 5 s or more |
| POSSIBLE CAUSE |
- Battery malfunction
- Position memory control module connector malfunction
- Open circuit in wiring harness between position memory control module and battery
- Short to ground in wiring harness between position memory control module and battery
- Open circuit in wiring harness between battery and GND
|
Courtesy of MAZDA MOTORS CORP.
