DTC U0431:68: Notes
DTC U0431:68 CHART (POSITION MEMORY CONTROL SYSTEM)
| DTC U0431:68 |
Invalid data received from BCM "A" |
| DETECTION CONDITION |
- Invalid data received from BCM "A"
|
| POSSIBLE CAUSE |
- BCM connector malfunction
- Position memory control module connector malfunction

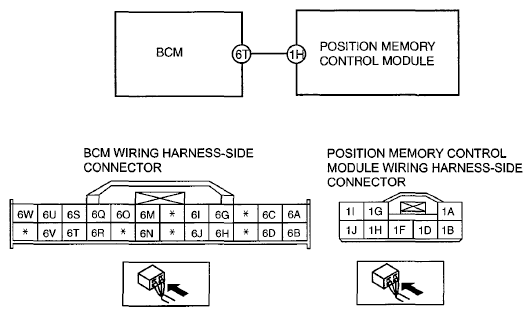

- Open circuit in wiring harness between the following terminals:
- BCM terminal 6T-Position memory control module terminal 1H
- Short to ground in wiring harness between the following terminals:
- Position memory control module terminal 1H-body GND
- Position memory control module malfunction
|
Courtesy of MAZDA MOTORS CORP.
