Intermediate Shaft Removal Note

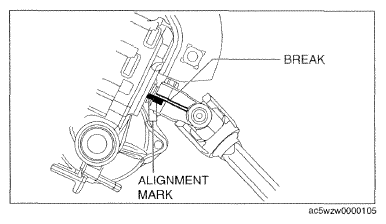

Place an alignment mark across the break between the steering column and the yoke for the intermediate shaft as shown in the figure.

Fig 1: Identifying Intermediate Shaft Alignment Mark
Courtesy of MAZDA MOTORS CORP.
Place alignment marks on the steering gear (pinion) and the intermediate shaft as shown in the figure.

Fig 2: Identifying Alignment Marks On Steering Gear (Pinion) And Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.

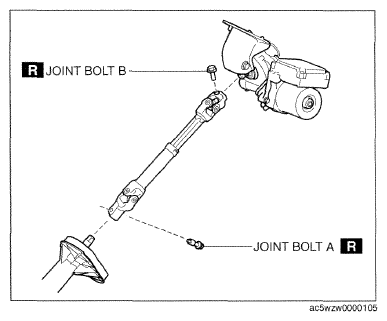

Remove joint bolt A, then joint bolt B.
Remove the intermediate shaft.

Fig 3: Identifying Intermediate Shaft
Courtesy of MAZDA MOTORS CORP.
