Starter Interlock Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the starter interlock switch connector.
Remove the starter interlock using the following procedure:
1. Detach hook A in the direction of the arrow shown in the figure.

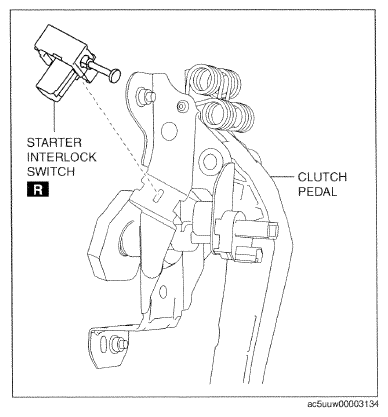

  Fig 1: Removing/Installing Starter Interlock Switch (C66M-R)
  Courtesy of MAZDA MOTORS CORP.
2. Slide the starter interlock switch in the direction of the arrow shown in the figure.

  Fig 2: Sliding Starter Interlock Switch
  Courtesy of MAZDA MOTORS CORP.
3. Remove the starter interlock switch from the clutch pedal.
Install the starter interlock using the following procedure:

Fig 3: Removing Starter Interlock Switch From Clutch Pedal
Courtesy of MAZDA MOTORS CORP.
1. Insert hook B of a new starter interlock switch into the clutch pedal hole.

  Fig 4: Inserting Hook B Of Starter Interlock Switch Into Clutch Pedal Hole
  Courtesy of MAZDA MOTORS CORP.
2. While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure.

  Fig 5: Pressing Starter Interlock Switch Against Clutch Pedal
  Courtesy of MAZDA MOTORS CORP.
Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.
Connect the starter interlock switch connector.
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Fully depress the clutch pedal, and verify that the engine starts.

Fig 6: Depressing Clutch Pedal
Courtesy of MAZDA MOTORS CORP.
