Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)

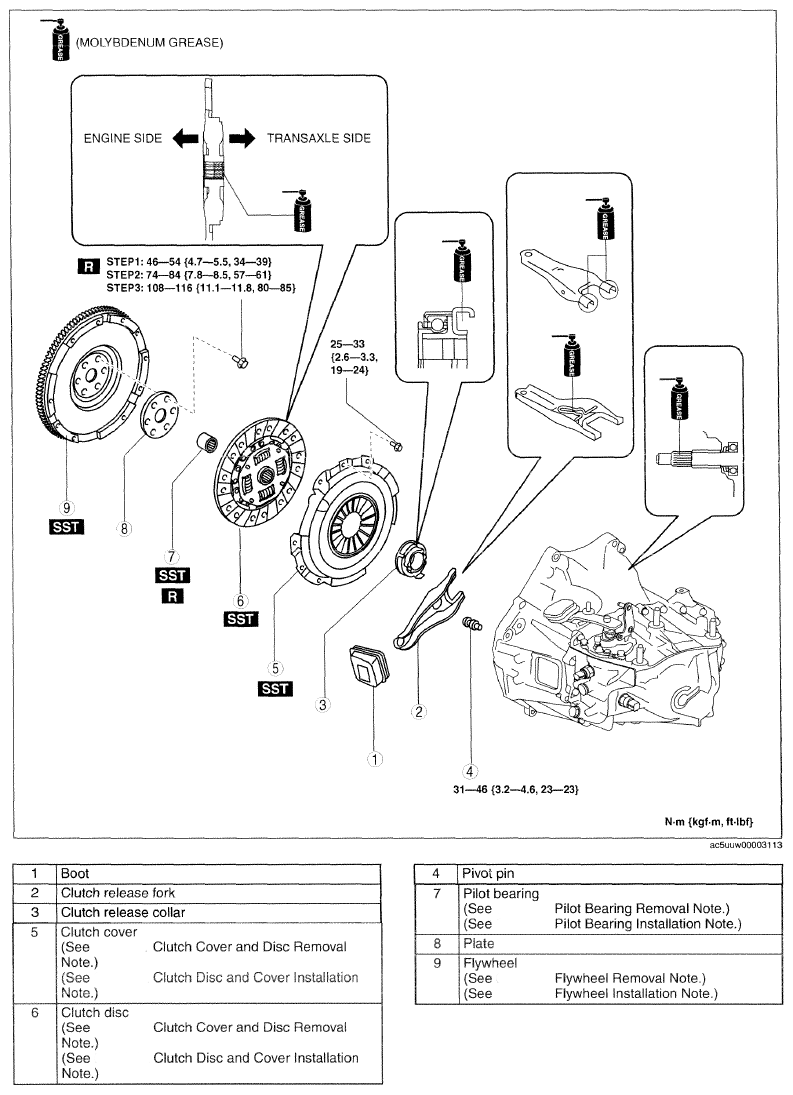

    Fig 1: Clutch (C66M-R) Components With Torque Specifications
    G09759372Courtesy of MAZDA MOTORS CORP.
