Oil Shower Pipe Installation Note

  1. Install the oil shower pipe in the order shown in the figure.
    TIGHTENING TORQUE SPECIFICATION

    Installation position Tightening torque
    1 9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
    2, 3 8.0-9.0 N.m {82-91 kgf.cm, 71-79 in.lbf}

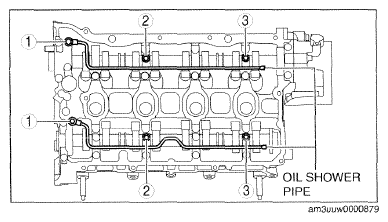

    Fig 1: Identifying Oil Shower Pipe Bolt
    G09758171Courtesy of MAZDA MOTORS CORP.
