Engine Front Cover Removal Note

Remove the insulator shown in the figure.

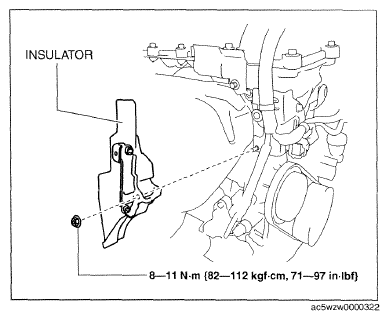

Fig 1: Insulator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Set the ground cable and wiring harness bracket shown in the figure aside.
Remove the engine front cover installation bolts.
Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
- Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
- Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.

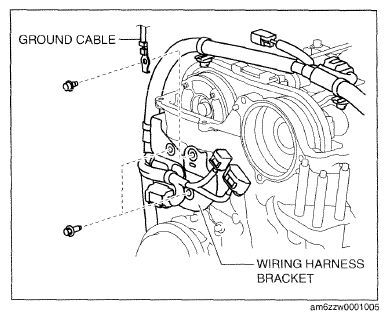

Fig 2: Removing Ground Cable Bolts
Courtesy of MAZDA MOTORS CORP.

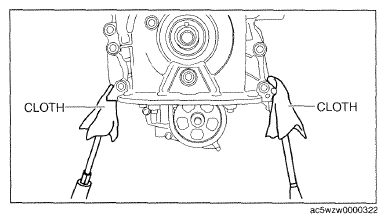

Fig 3: Peeling Sealant From Engine Using Cloth
Courtesy of MAZDA MOTORS CORP.

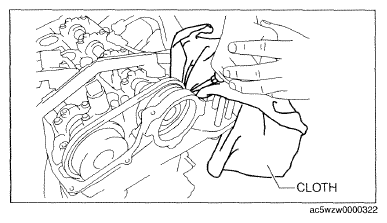

Fig 4: Removing Engine Front Cover
Courtesy of MAZDA MOTORS CORP.
