Plug Hole Plate Removal/Installation: Installation

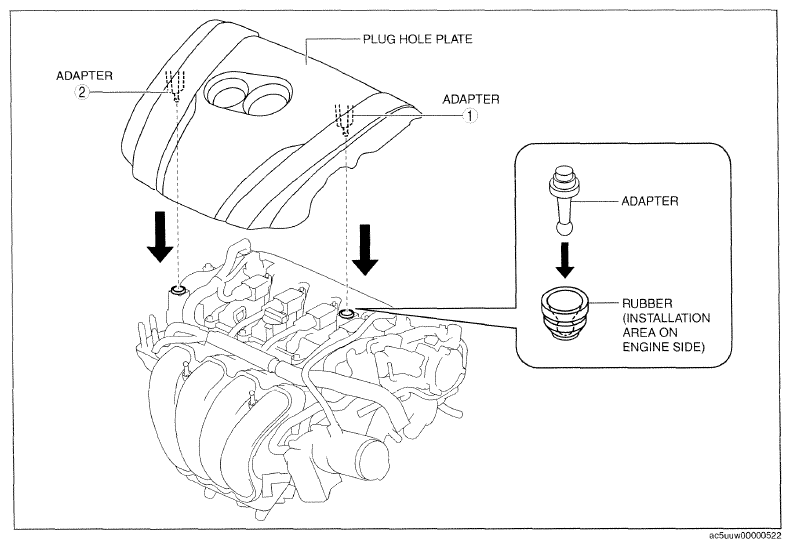

  1. Press the plug hole plate in the order shown in the figure to insert the adapter to the rubber on the engine side.
    Fig 1: Pressing Plug Hole Plate
    G09758036Courtesy of MAZDA MOTORS CORP.

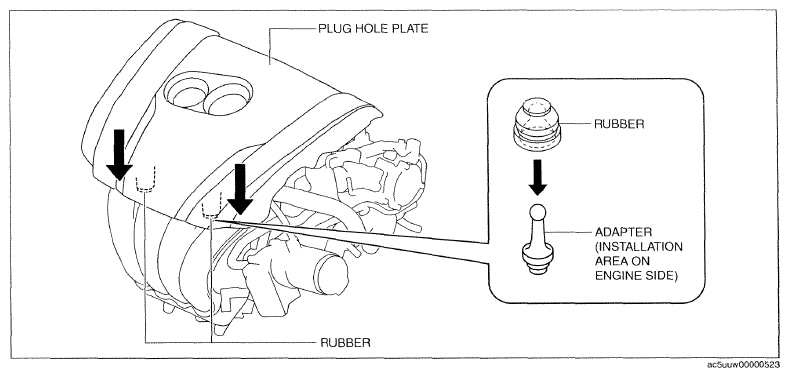

  2. Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.
    Fig 2: Inserting Rubber To Adapter On Engine Side
    G09758037Courtesy of MAZDA MOTORS CORP.
