Front Oil Seal Replacement: Notes

WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until It is cool before servicing.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  2. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

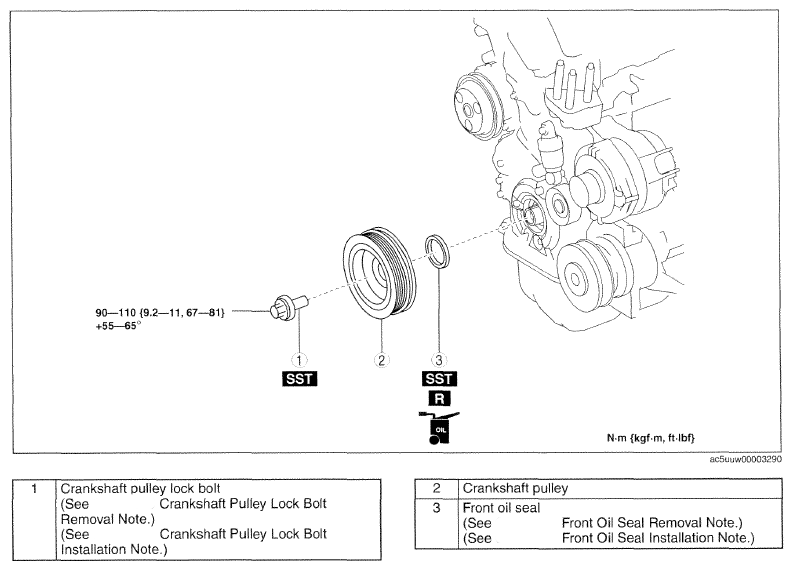

    Fig 1: Removing Crankshaft Pulley Lock Bolt With Torque Specification
    G09758225Courtesy of MAZDA MOTORS CORP.
