Exhaust Manifold Bracket Installation Note

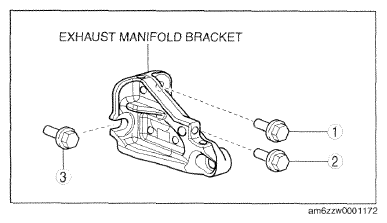

- Temporarily tighten the bolt (3) shown in the figure, insert the exhaust manifold bracket from the side, and temporarily install the exhaust manifold bracket.
- Temporarily tighten the bolt (1) shown in the figure.
- Temporarily tighten the bolt (2) shown in the figure.
- Tighten the bolt in the order shown in the figure.
Tightening torque
38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
