Using instrument cluster (without TFT LCD)

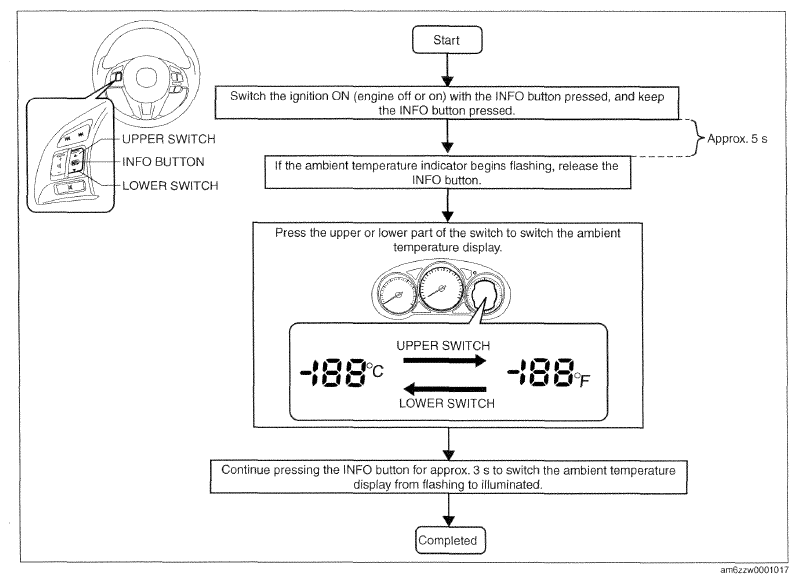

Fig 1: Instrument Cluster Communication Diagram (Without TFT LCD)
G09762988Courtesy of MAZDA MOTORS CORP.
