DTC B10AF: 12 Blower Relay Circuit Malfunction: Notes
DTC B10AF:12 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Blower relay circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to power supply in the blower relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- Blower relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

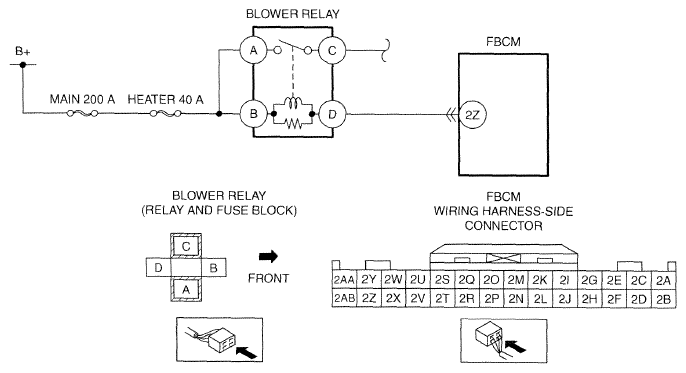

- Short to power supply in the wiring harness between blower relay terminal D and front body control module (FBCM) terminal 2Z
- Front body control module (FBCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
