Transfer Location Index

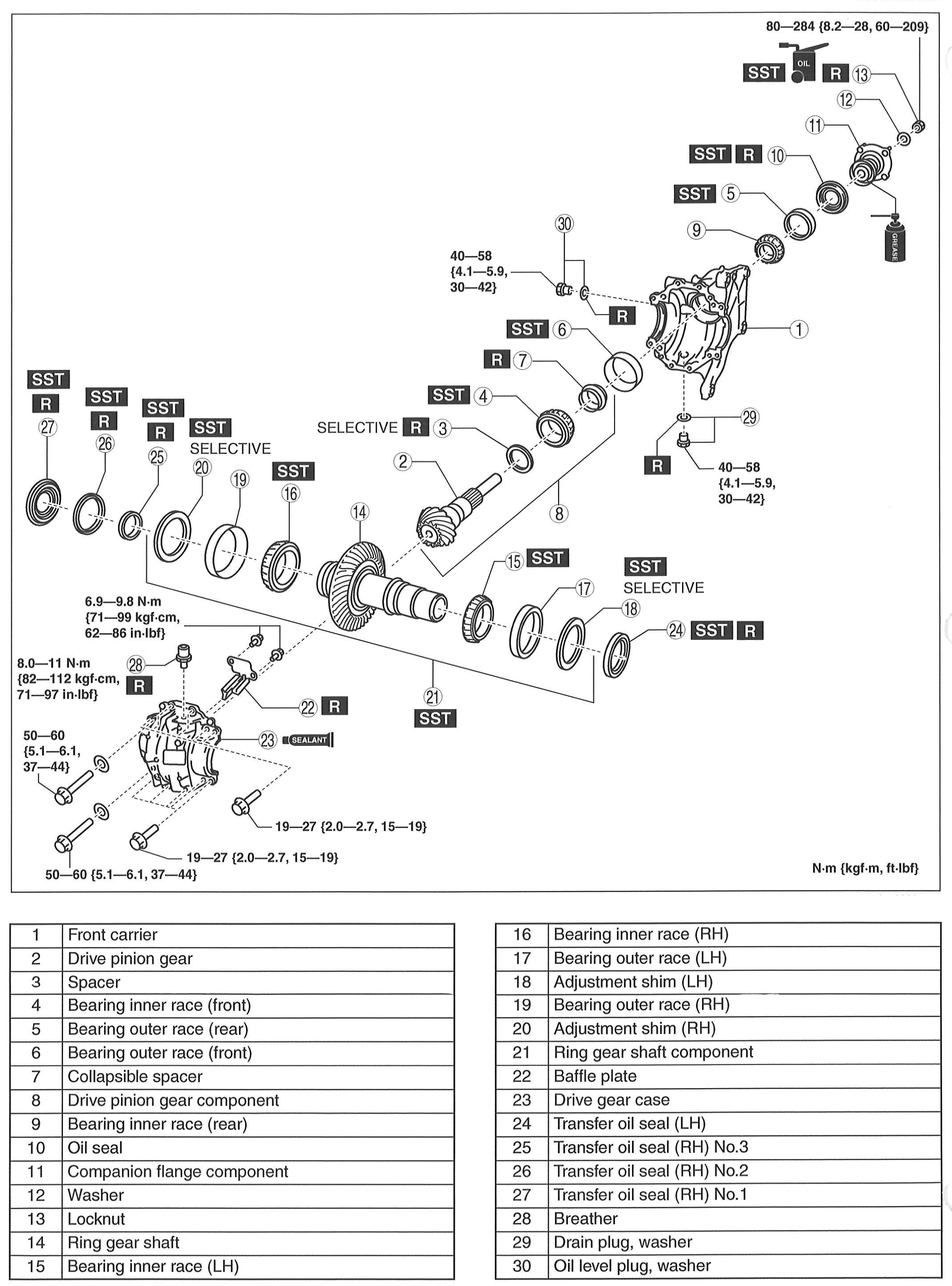

Fig 1: Transfer Assembly Exploded View With Torque Specifications
G00539932Courtesy of MAZDA MOTORS CORP.

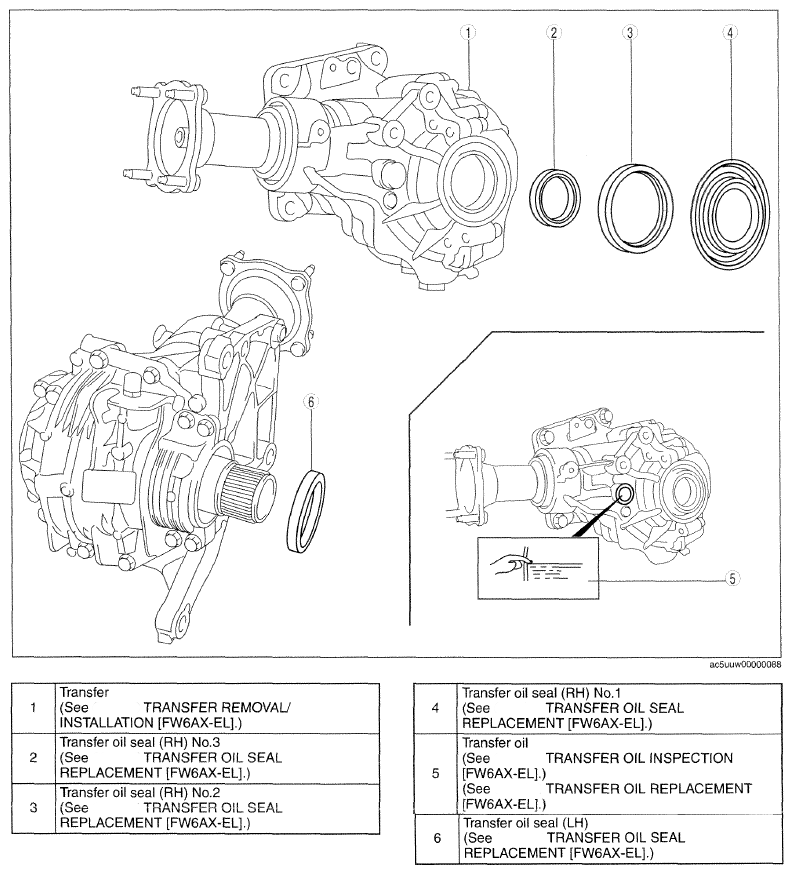

Fig 2: Transfer Components Location
G09759135Courtesy of MAZDA MOTORS CORP.

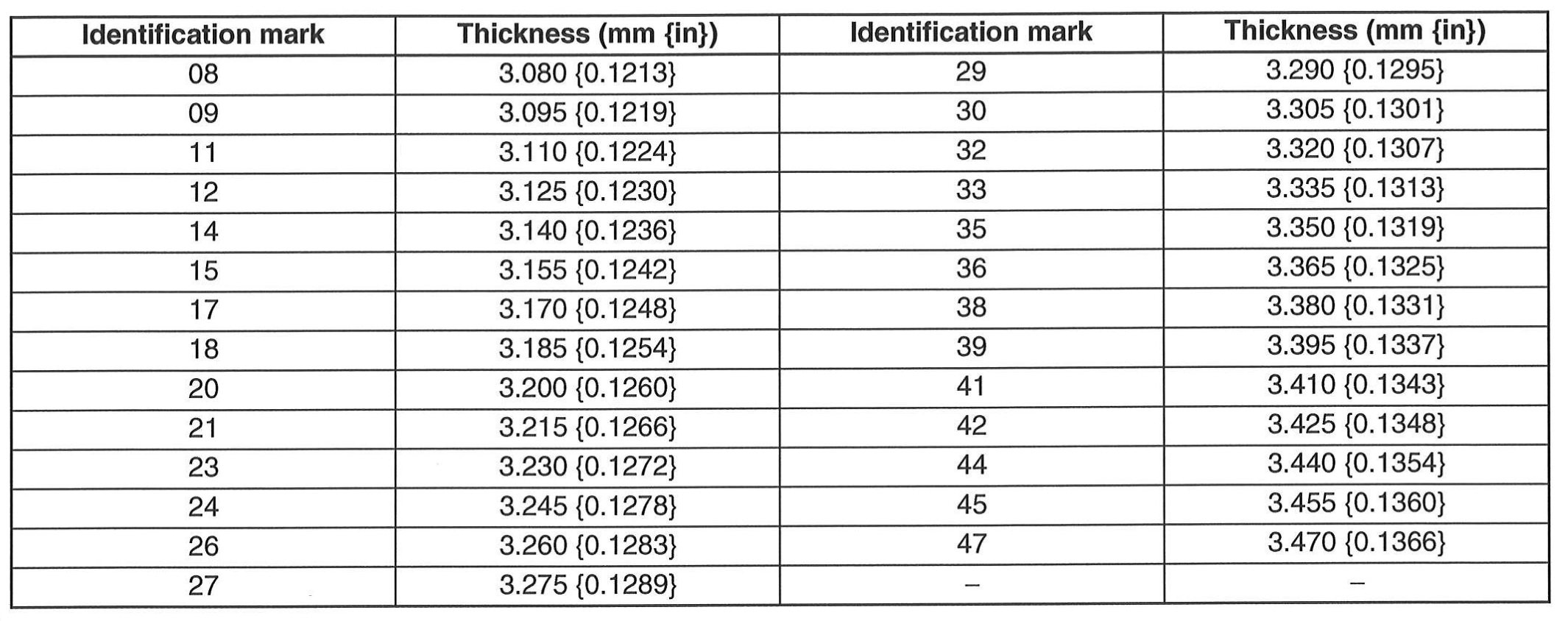

Fig 3: Pinion Shim Thickness Chart (Replace with original thickness)
G00539933Courtesy of MAZDA MOTORS CORP.
