On-Vehicle Removal

WARNING:

A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool
Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.

CAUTION:

if the control valve body has been replaced, perform initial learning. (See INITIAL LEARNING .)

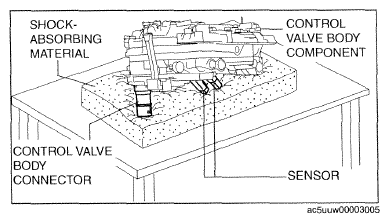

Placing the control valve body connector side pointed downward could damage the control valve body connector part or sensor. If the servicing can only be performed by pointing the control valve body connector side downward, spread shock-absorbing material, which does not produce dust or foreign matter, and place the control valve body connector part and sensor on the table so that they do not directly contact the table.

Fig 1: Removing/Installing Control Valve Body

Courtesy of MAZDA MOTORS CORP.

Select the selector lever to P position.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Disconnect the control valve body connector.
CAUTION:
- Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
- Water or foreign matter entering the connector can cause a poor connection or corrosion. Be careful not allow water droplets or foreign matter to get on the connector when disconnecting it.
Fig 2: Identifying Control Valve Body Connector
Courtesy of MAZDA MOTORS CORP.
Remove the hose clamp.
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Remove the oil pan.
CAUTION:
- To avoid damaging the control valve body, if there is a large amount of foreign matter at the bottom of the oil pan when the oil pan is removed, replace the oil strainer with a new one.
- If there is not a large amount of foreign matter at the bottom of the oil pan, the oil strainer does not have to be replaced.
Fig 3: Removing Hose Clamp
Courtesy of MAZDA MOTORS CORP.
Remove the oil strainer.

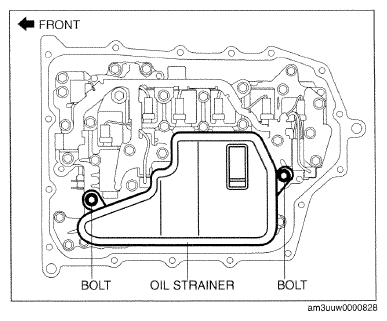

Fig 4: Identifying Oil Strainer Mounting Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the oil strainer O-rings.

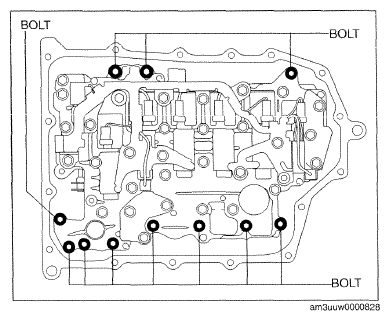

Remove the control valve body.
CAUTION:
- Remove the control valve body directly from underneath so that force is not applied to the control valve body connector in the lateral direction.
Fig 5: Identifying Oil Strainer O-Rings
Courtesy of MAZDA MOTORS CORP.
Remove the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)

Fig 6: Identifying Oil Seal Mounting Bolts
Courtesy of MAZDA MOTORS CORP.

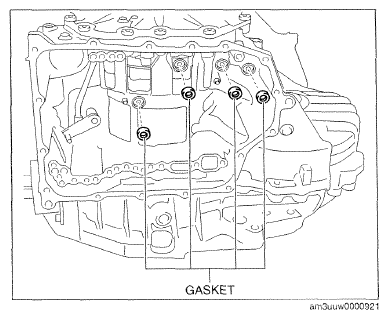

Remove the gasket from the transaxle case.

Fig 7: Identifying Gasket From Transaxle Case
Courtesy of MAZDA MOTORS CORP.
