NO. 3 WILL NOT CRANK (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

3	WILL NOT CRANK
DESCRIPTION	Starter does not work.

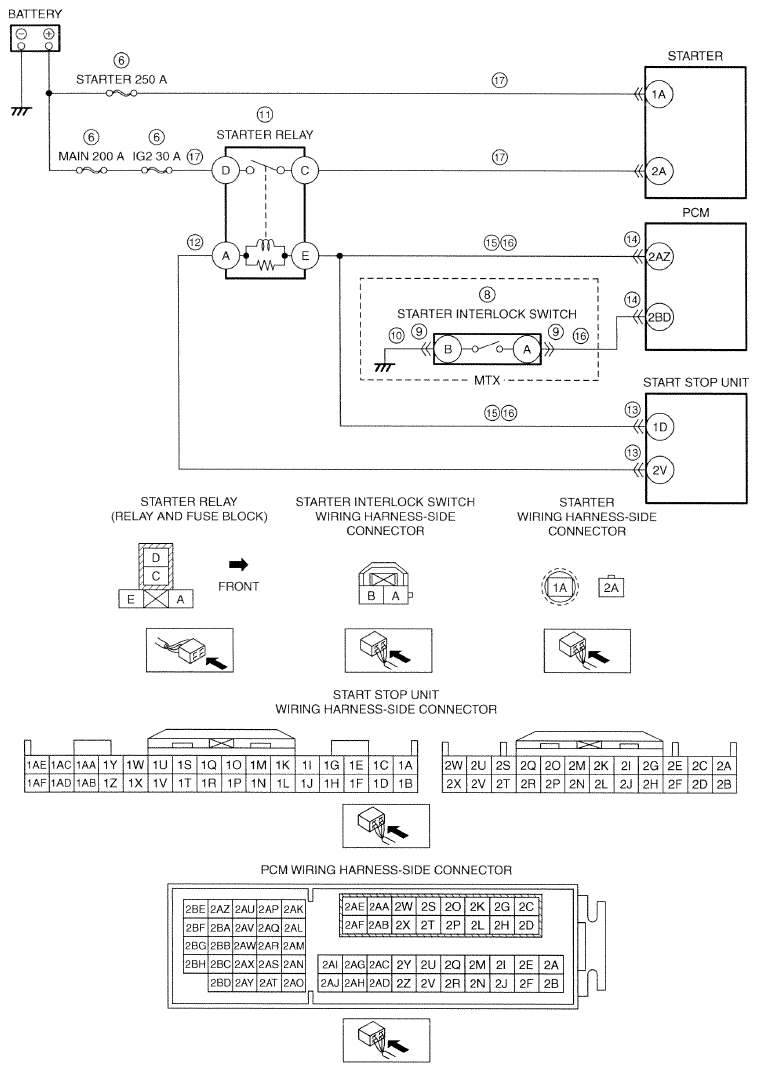

POSSIBLE CAUSE	Poor connection of push button start connector Instrument cluster or related wiring harness malfunction Immobilizer system malfunction PCM continuous memory DTC is stored Open circuit in wiring harness between the following terminals: Main relay terminal E-PCM terminal 2K Main relay terminal C-PCM terminal 2S, 1CK DLC-2-PCM terminal 2AK, 2AL Main relay malfunction (stuck open) Open or poor ground circuit Poor connection of vehicle body ground Battery malfunction Fuse malfunction Starter relay malfunction Starter relay related wiring harness malfunction Between starter relay terminal E and PCM terminal 2AZ Between starter relay terminal E and start stop unit terminal 1D Between start stop unit terminal 2V and starter relay terminal A Following circuit malfunction: Between battery positive terminal and starter terminal 1A Between battery positive terminal and starter relay terminal D Between starter relay terminal C and starter terminal 2A Starter interlock switch and related wiring harness malfunction (MTX) Starting system malfunction Following circuit and/or connector malfunction: Between push button start terminal A and start stop unit terminal 1AC Between push button start terminal B and start stop unit terminal 1AE Between start stop unit terminal 2M-Front body control module (FBCM) terminal 2K Between start stop unit terminal 20-Front body control module (FBCM) terminal 2I Between front body control module (FBCM) terminal 2P-PCM terminal 2AK Between front body control module (FBCM) terminal 2N-PCM terminal 2AL Seized engine, flywheel (MTX) or drive plate (ATX) Engine damage during compression due to liquid (such as water, fuel, or engine oil) penetration into cylinder
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.

RELATED PIDS

Item (definition)	Unit/Condition	Definition	Condition/Specification (Reference)
VPWR	V	Battery positive voltage	Displays battery voltage
