Intake-Air System Location Index
Intake-Air System Location Index

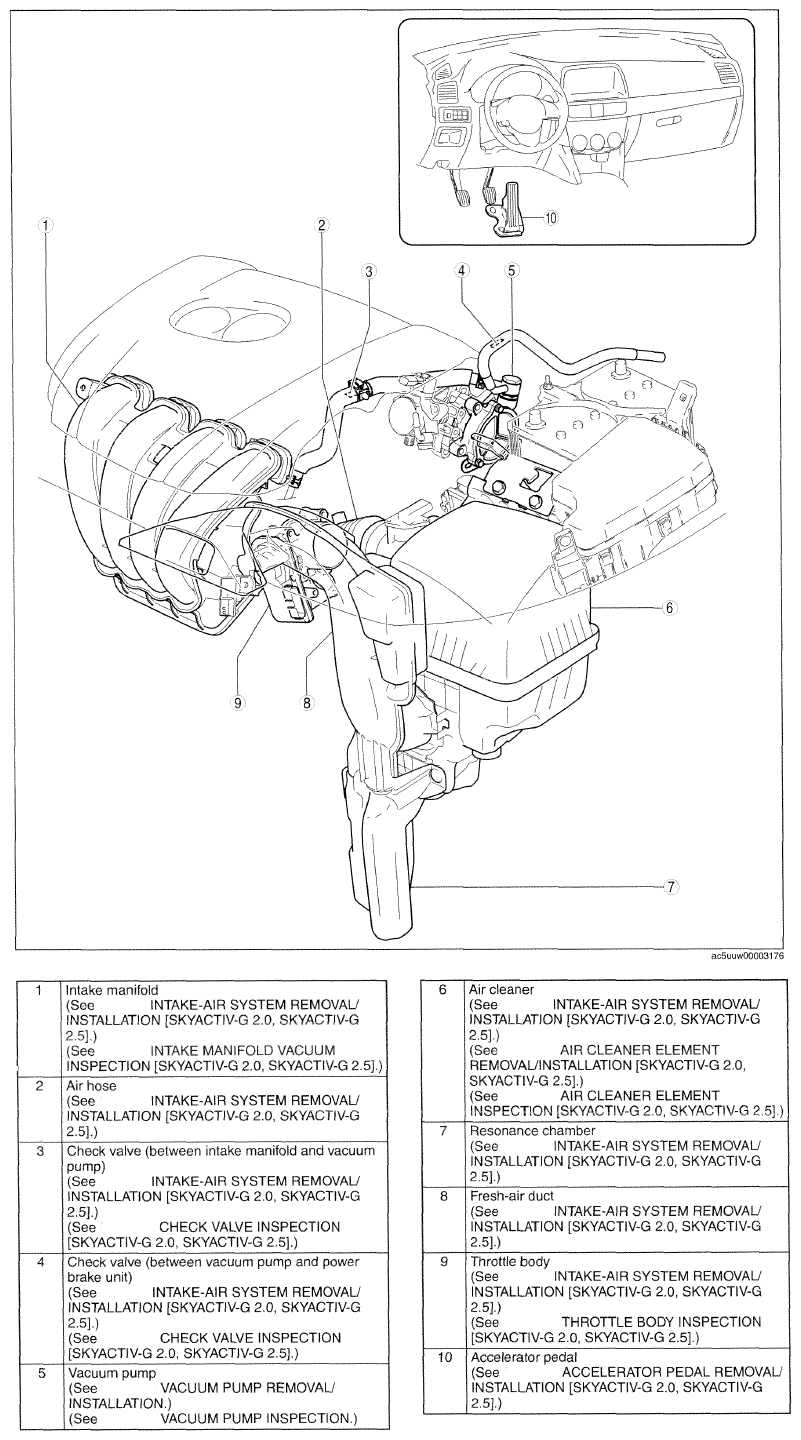

Fig 1: Identifying Intake-Air System Components (Skyactiv-G 2.0, Skyactiv-G 2.5)
