System Diagram

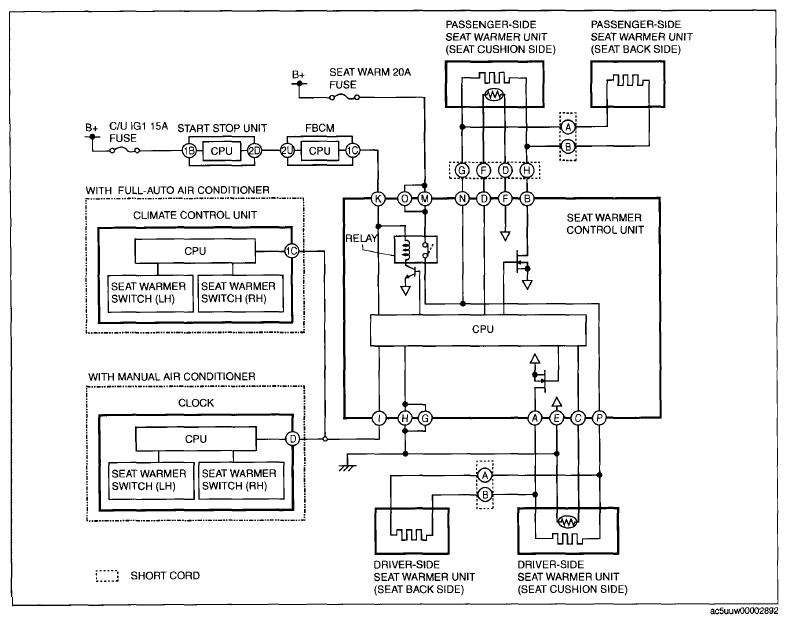

Fig 1: Seat Warmer Control Unit - System Diagram

G09076944

Courtesy of MAZDA MOTORS CORP.
