Center Accessory Socket Inspection

Remove the center accessory socket, (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
Connect the tester probe to the position shown in the figure and verify that there is continuity.
- If it cannot be verified, replace the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)

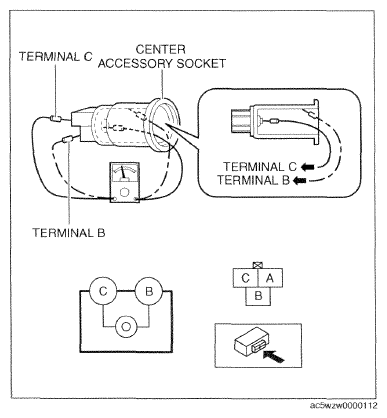

  Fig 1: Connecting Tester Probe To Center Accessory Socket
  Courtesy of MAZDA MOTORS CORP.
