Liftgate Latch And Lock Actuator Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

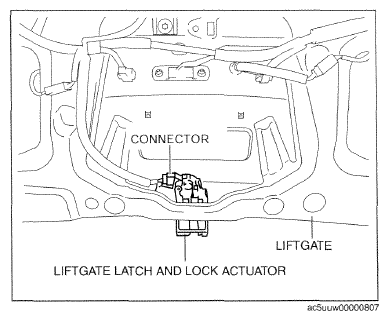

    Fig 1: Identifying Liftgate Latch And Lock Actuator Connector
    G09761441Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the liftgate latch and lock actuator from the liftgate.
  6. Install in the reverse order of removal.
    Fig 2: Liftgate Latch And Lock Actuator With Torque Specifications
    G09077050Courtesy of MAZDA MOTORS CORP.
