Locks And Openers

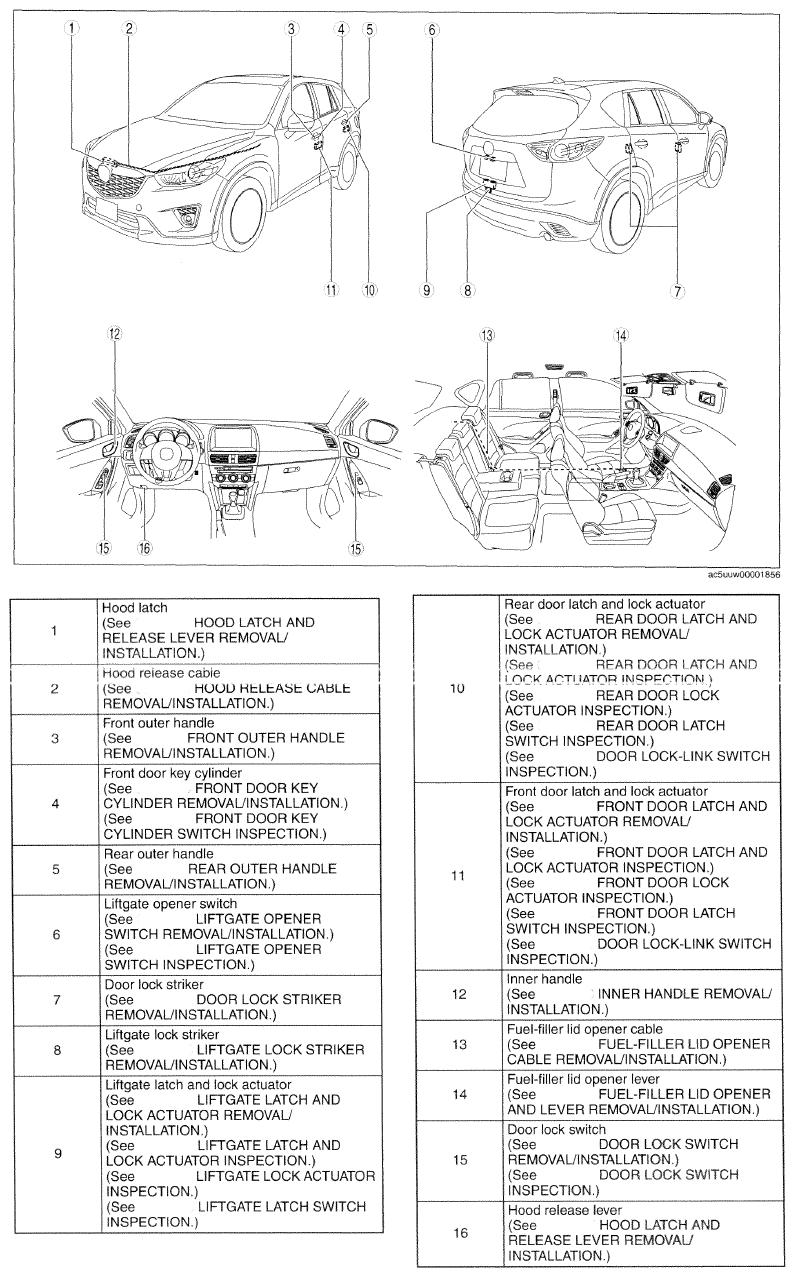

Fig 1: Security And Locks Components Location (Locks And Openers)

G09761358

Courtesy of MAZDA MOTORS CORP.
