Auto Leveling Sensor And AFS Control Module Connector End View
Auto Leveling Sensor And AFS Control Module Connector End View

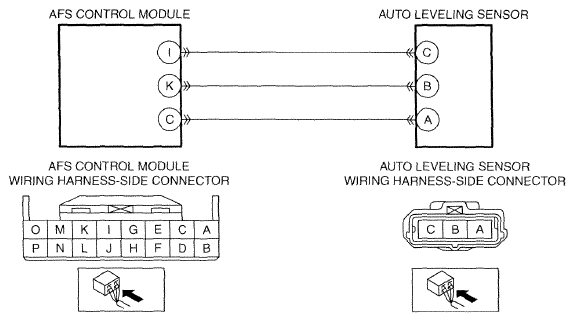

Fig 1: Auto Leveling Sensor And AFS Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
