Automatic Transaxle Control System Wiring Diagram

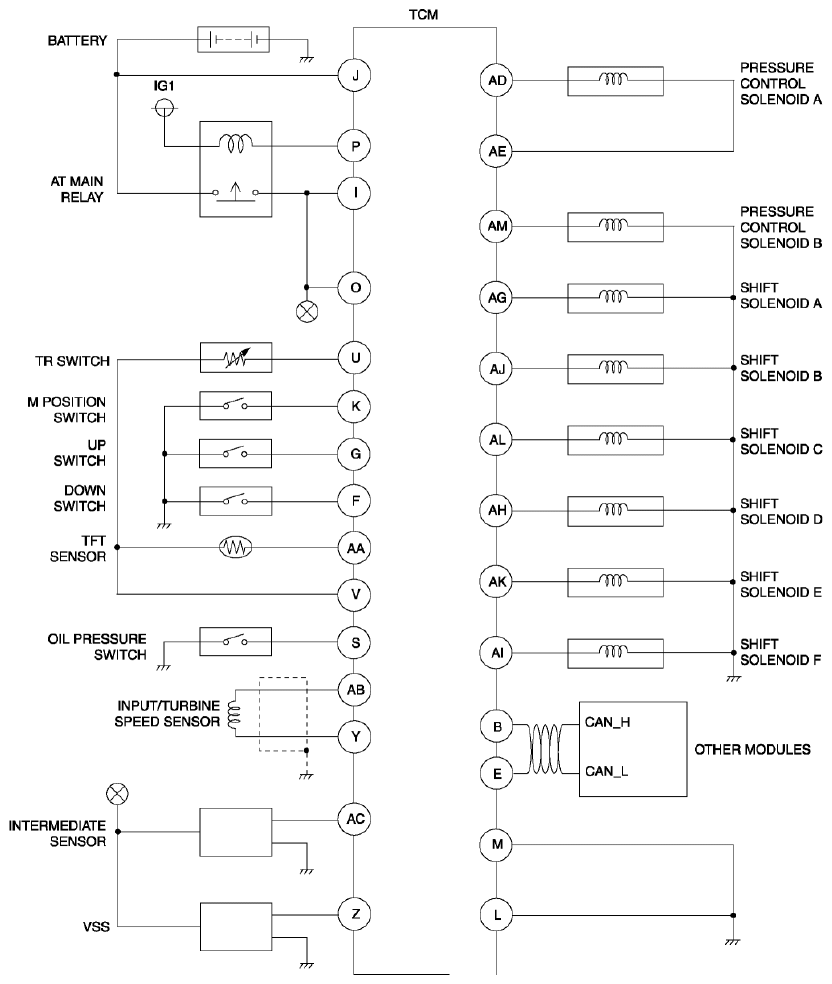

Fig 1: Automatic Transaxle Control System Wiring Diagram (FS5A-EL)

G08151986

Courtesy of MAZDA MOTORS CORP.
