| DETECTION CONDITION |
- After engine is started, shift solenoid B voltage is 0 V or does not change from B+
Diagnostic support note
- The check engine light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The automatic transaxle warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| FAIL-SAFE FUNCTION |
- Inhibits 1GR, 4GR and 5GR
- Inhibits shifting from 2GR to 3GR
- Maximizes line pressure
- Inhibits feedback control
|
| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction

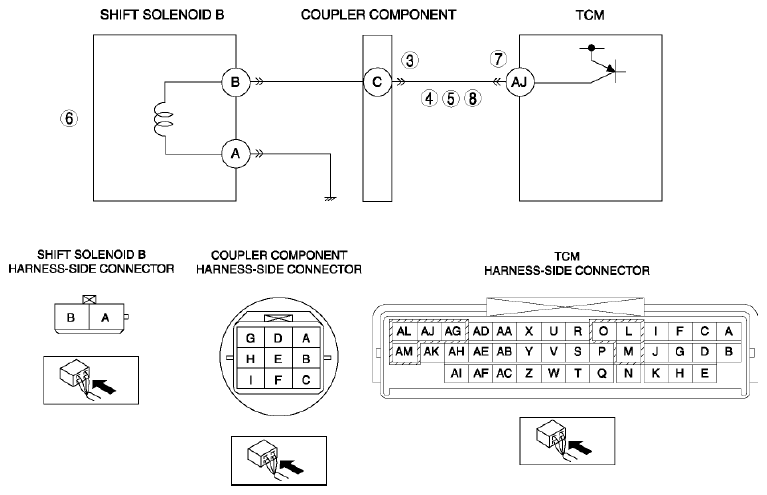

- Short to power supply in wiring harness between shift solenoid B terminal B and TCM terminal AJ
- Short to GND in wiring harness between shift solenoid B terminal B and TCM terminal AJ
- Shift solenoid B malfunction
- TCM connector or terminal malfunction
- Open circuit in wiring harness between shift solenoid B terminal B and TCM terminal AJ
- TCM malfunction
|
