On-Vehicle Inspection

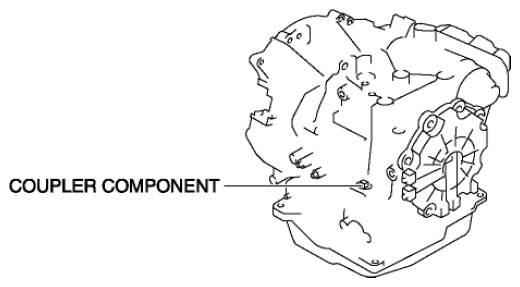

- Disconnect the coupler component connector.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the coupler component connector.
- Measure the resistance between coupler component terminals E and H.
- If there is any malfunction, replace the coupler component. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .)
ATF TEMPERATURE RESISTANCE
| ATF temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| -20 {-4} | 236-324 |
| 0 {32} | 84.3-110 |
| 20 {68} | 33.5-42.0 |
| 40 {104} | 14.7-17.9 |
| 60 {140} | 7.08-8.17 |
| 80 {176} | 3.61-4.15 |
| 100 {212} | 1.96-2.24 |
| 120 {248} | 1.13-1.28 |
| 130 {266} | 0.87-0.98 |
