Shift Solenoid C

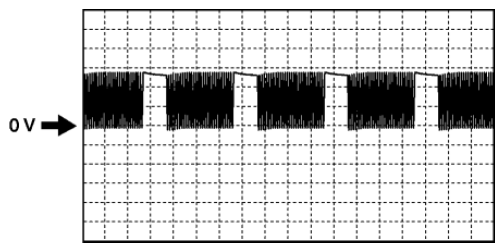

Fig 1: Shift Solenoid C Oscilloscope Waveform

G08152128

Courtesy of MAZDA MOTORS CORP.

Terminal:
AL (+)-GND (-)
Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
Measurement condition:
D position driving in 1GR
