Pressure Control Solenoid B

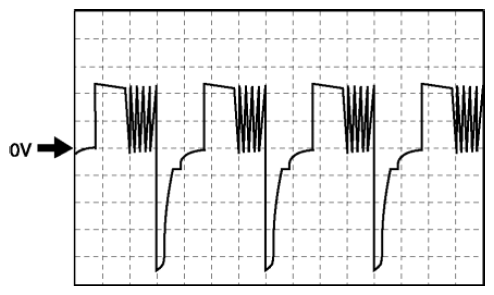

Fig 1: Pressure Control Solenoid B Oscilloscope Waveform

G08152129

Courtesy of MAZDA MOTORS CORP.

Terminal:
AM (+)-GND (-)
Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
Measurement condition:
Shifting from 4GR to 5GR, 5GR to 4GR
