Secondary Control Valve Body

  1. Remove the secondary control valve body.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
    2. Disconnect the negative battery cable.
    3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
    4. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
    5. Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
    6. Clean the outside of the transaxle using steam or detergent oil.
    7. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
    8. Remove the oil cover. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
    9. Remove the secondary control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  2. Remove in the order shown below.
  3. Install in the reverse order of removal.
  4. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  5. Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
  6. Perform the road test. (See ROAD TEST .)

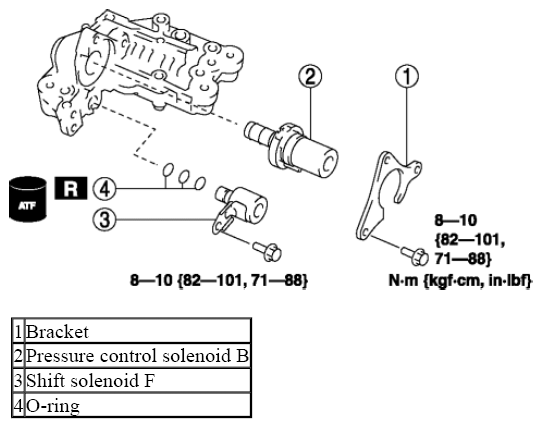

Fig 1: Secondary Control Valve Body Related Replacement Components With Torque Specifications
G08152119Courtesy of MAZDA MOTORS CORP.
